Caution / Notice / Hint
COMPONENTS (REASSEMBLY)
Fig 1: Rear Door Opening Trim Weatherstrip Reassembly Components With Torque Specifications (1 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | BACK DOOR SIDE MALE STOPPER LH | 69462 | See step 1 | - | - |
| 2 | BACK DOOR SIDE MALE STOPPER RH | 69461 | See step 1 | - | - |
| 3 | DOOR DUST PROOF SEAL | 67837L | - | - | - |
| 4 | NO. 1 BACK DOOR WIRE | 82184 | - | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
Fig 2: Rear Door Opening Trim Weatherstrip Reassembly Components With Torque Specifications (2 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 5 | HOLE PLUG | - | - | - | - |
| 6 | CUSHION | - | - | - | - |
| 7 | BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY | 76801D | - | - | - |
| 8 | BACK DOOR OPENER SWITCH ASSEMBLY | 84840G | - | - | - |
| 9 | REAR TELEVISION CAMERA ASSEMBLY | 86790D | - | - | - |
| 10 | NO. 1 CAMERA CLEANER NOZZLE ASSEMBLY | 867F0A | - | - | - |
| 11 | REAR LIGHT ASSEMBLY | 81580A | See step 11 | - | - |
| 12 | REAR LICENSE LIGHT COVER | 75132A | See step 12 | - | - |
| 13 | BACK DOOR NO. 5 SERVICE HOLE COVER | 67769B | - | - | - |
| 14 | HOLE PLUG | - | - | - | - |
| 15 | BACK DOOR OUTSIDE LOWER GARNISH SUB-ASSEMBLY LH | 76806 | See step 15 | ||
| 16 | BACK DOOR SIDE GARNISH LH | 67938A | |||
| 17 | BACK DOOR NO. 1 SERVICE HOLE COVER | 67765A | |||
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

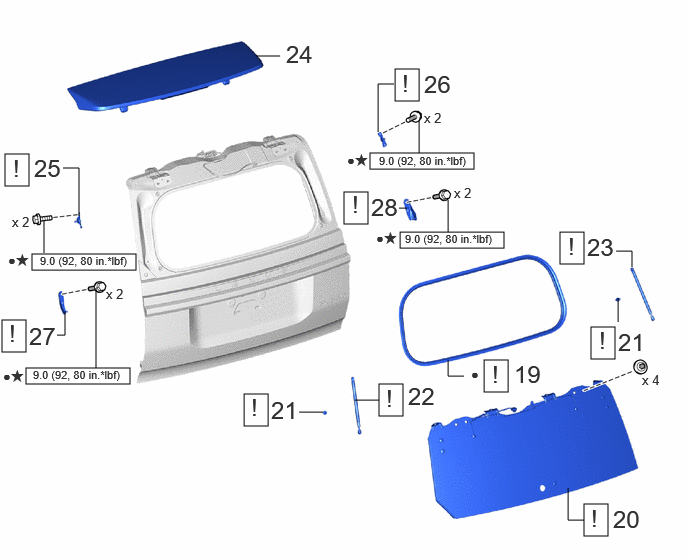

Fig 3: Rear Door Opening Trim Weatherstrip Reassembly Components With Torque Specifications (3 Of 6)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 18 | BACK DOOR NO. 2 WEATHERSTRIP | 67882C | See step 18 | - | - |
| 19 | BACK DOOR GLASS | 68131 | See step 19 | - | - |
| 20 | BACK DOOR STAY BOLT | 68961 | See step 20 | - | - |
| 21 | BACK WINDOW STAY ASSEMBLY LH | 68940 | See step 21 | - | - |
| 22 | BACK WINDOW STAY ASSEMBLY RH | 68930 | See step 21 | - | - |
| 23 | REAR SPOILER SUB-ASSEMBLY | 76085 | - | - | - |
| 24 | BACK DOOR UPPER DAMPER STAY BRACKET LH | 68946 | See step 24 | - | - |
| 25 | BACK DOOR UPPER DAMPER STAY BRACKET RH | 68945 | See step 24 | - | - |
| 26 | BACK DOOR LOWER DAMPER STAY BRACKET LH | 68948 | See step 26 | - | - |
| 27 | BACK DOOR LOWER DAMPER STAY BRACKET RH | 68947 | See step 26 | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| * | Precoated part | - | - |

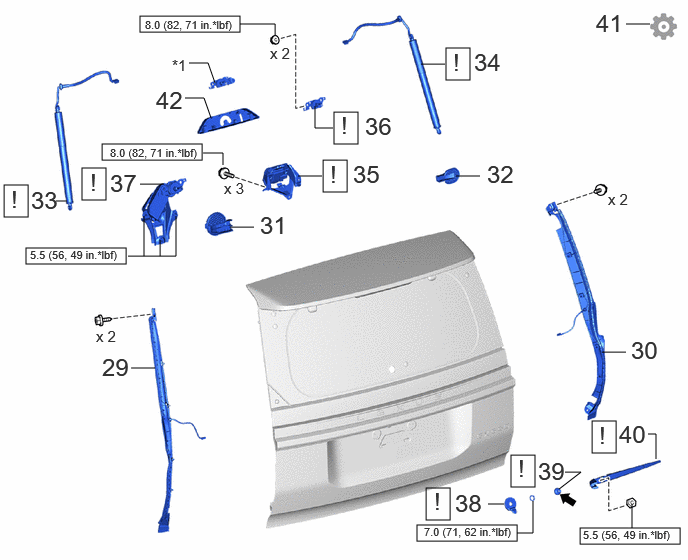

Fig 4: Rear Door Opening Trim Weatherstrip Reassembly Components With Torque Specifications (4 Of 6)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 28 | POWER BACK DOOR SENSOR ASSEMBLY LH | 84280D | - | - | - |
| 29 | POWER BACK DOOR SENSOR ASSEMBLY RH | 84270G | - | - | - |
| 30 | BACK DOOR NO. 4 SERVICE HOLE COVER | 67768C | - | - | - |
| 31 | BACK DOOR NO. 3 SERVICE HOLE COVER | 67767B | - | - | - |
| 32 | POWER BACK DOOR UNIT ASSEMBLY LH | 68920A | See step 32 | - | - |
| 33 | POWER BACK DOOR UNIT ASSEMBLY RH | 68910B | See step 32 | - | - |
| 34 | BACK WINDOW LOCK ASSEMBLY | 69370E | See step 34 | - | - |
| 35 | REAR WIPER LINK ASSEMBLY | 85160R | See step 35 | - | - |
| 36 | REAR WIPER MOTOR ASSEMBLY | 85110R | See step 36 | - | - |
| 37 | REAR WIPER LINK PIVOT WITH WASHER PACKING NUT | 85148R | See step 37 | - | - |
| 38 | REAR WIPER LINK CAP | 85176R | See step 38 | - | - |
| 39 | REAR WIPER ARM AND BLADE ASSEMBLY | - | See step 39 | - | - |
| 40 | INSPECT REAR WIPER ARM AND BLADE ASSEMBLY | - | - | - | See step 40 |
| 41 | REAR WIPER SHAFT COVER | 85132A | - | - | - |
| *1 | REAR WIPER LINK FRAME | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | MP grease |
Fig 5: Rear Door Opening Trim Weatherstrip Reassembly Components With Torque Specifications (5 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 42 | BACK DOOR GARNISH | 67935B | - | - | - |
| 43 | REAR INNER MIRROR CAMERA ASSEMBLY | 867C0B | - | - | - |
| 44 | MULTIPLEX NETWORK DOOR ECU | 89222A | - | - | - |
| 45 | BACK DOOR LOCK ASSEMBLY WITH COURTESY LIGHT SWITCH | 69350P | See step 45 | - | - |
| 46 | BACK DOOR NO. 2 SERVICE HOLE COVER | 67766 | - | - | - |
| 47 | NO. 3 SPEAKER WITH BOX ASSEMBLY | 86150C | See step 47 | - | - |
| 48 | NO. 2 SPEAKER WITH BOX ASSEMBLY | 86150B | See step 48 | - | - |
| 49 | NO. 1 SPEAKER WITH BOX ASSEMBLY | 86150 | See step 49 | - | - |
| *A | for 21 Speakers | *B | w/ Digital Inner Mirror |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 50 | BACK DOOR SERVICE HOLE COVER | 67847A | - | - | - |
| 51 | BACK DOOR TRIM PANEL ASSEMBLY | 64780A | - | - | - |
| 52 | BACK DOOR LOCK COVER | 64798 | - | - | - |
| 53 | BACK DOOR LOCK COVER | 69321 | - | - | - |
| 54 | BACK DOOR FINISH COVER | 75837E | - | - | - |
| 55 | BACK DOOR INSIDE HANDLE | 69212C | - | - | - |
| 56 | BACK DOOR SIDE GARNISH LH | 67938A | - | - | - |
| 57 | BACK DOOR SIDE GARNISH RH | 67937B | - | - | - |
| 58 | BACK DOOR CENTER GARNISH | 67939B | - | - | - |
| 59 | BACK DOOR CENTER GARNISH | 67939B | - | - | - |
| 60 | INITIALIZE POWER BACK DOOR SYSTEM | - | - | - | See step 60 |
| 61 | INSPECT POWER BACK DOOR SYSTEM | - | - | - | See step 61 |
| 62 | INSPECT POWER DOOR LOCK OPERATION | See step 62 | |||
| 63 | PERFORM CALIBRATION | - | - | - | See step 63 |
| *A | w/o Digital Inner Mirror | *B | w/ Digital Inner Mirror |
