Caution / Notice / Hint

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during the back door removal/installation are shown below.

NECESSARY PROCEDURE AFTER PARTS REMOVED/INSTALLED/REPLACED

Replaced Part or Performed Procedure	Necessary Procedures	Effect/Inoperative Function when Necessary Procedures are not Performed	Link
Front television camera assembly, front bumper assembly or radiator grille Rear television camera assembly Side television camera assembly LH or outer rear view mirror assembly LH Side television camera assembly RH or outer rear view mirror assembly RH	Television camera view adjustment HINT: Replacement or removal and installation of 2 or more parts	Panoramic view monitor system Multi-terrain monitor system	Refer to BEFORE STARTING ADJUSTMENT [12/2023 - ]
Rear television camera assembly (Including removal and installation)	Rear television camera view adjustment	Parking support brake system Panoramic view monitor system Multi-terrain monitor system	Refer to BEFORE STARTING ADJUSTMENT [12/2023 - ]
Multiplex network door ECU Power back door unit assembly set LH Power back door unit assembly set RH	Reset back door close position	Power back door system	Refer to INITIALIZATION [12/2023 - ]

COMPONENTS (DISASSEMBLY)

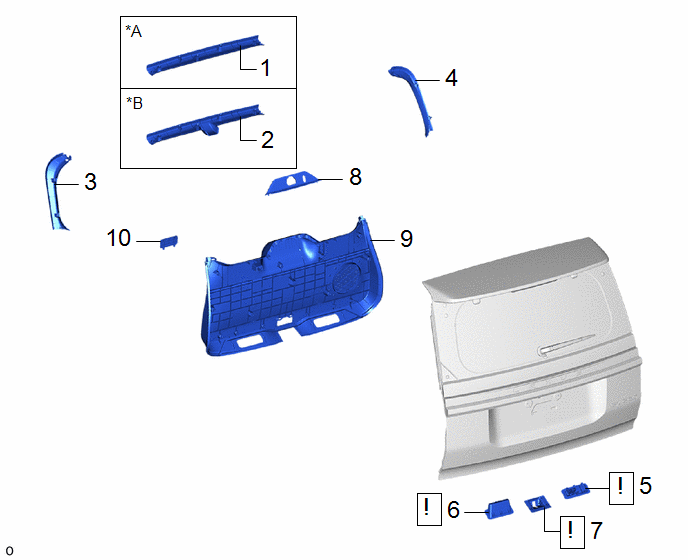

Fig 1: Rear Door Opening Trim Weatherstrip Disassembly Components (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
1	BACK DOOR CENTER GARNISH	67939B	-	-	-
2	BACK DOOR CENTER GARNISH	67939B	-	-	-
3	BACK DOOR SIDE GARNISH LH	67938A	-	-	-
4	BACK DOOR SIDE GARNISH RH	67937B	-	-	-
5	BACK DOOR INSIDE HANDLE	69212C	See step 5	-	-
6	BACK DOOR FINISH COVER	75837E	See step 6	-	-
7	BACK DOOR LOCK COVER	69321	See step 7	-	-
8	BACK DOOR LOCK COVER	64798	-	-	-
9	BACK DOOR TRIM PANEL ASSEMBLY	64780A	-	-	-
10	BACK DOOR SERVICE HOLE COVER	67847A	-	-	-

w/o Digital Inner Mirror

w/ Digital Inner Mirror

Fig 2: Rear Door Opening Trim Weatherstrip Disassembly Components (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
11	NO. 2 SPEAKER WITH BOX ASSEMBLY	74811G	See step 11	-	-
12	NO. 1 SPEAKER WITH BOX ASSEMBLY	64785A	See step 12	-	-
13	NO. 3 SPEAKER WITH BOX ASSEMBLY	69321	See step 13	-	-
14	BACK DOOR NO. 2 SERVICE HOLE COVER	67766	-	-	-
15	BACK DOOR LOCK ASSEMBLY WITH COURTESY LIGHT SWITCH	69350P	-	-	-
16	MULTIPLEX NETWORK DOOR ECU	89222A	-	-	-
17	REAR INNER MIRROR CAMERA ASSEMBLY	867C0B	-	-	-
18	BACK DOOR GARNISH	67935B	-	-	-

for 21 Speakers

w/ Digital Inner Mirror

Fig 3: Rear Door Opening Trim Weatherstrip Disassembly Components (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
19	REAR WIPER SHAFT COVER	85132A	-	-	-
20	REAR WIPER ARM AND BLADE ASSEMBLY	-	-	-	-
21	REAR WIPER LINK CAP	85176R	-	-	-
22	REAR WIPER LINK PIVOT WITH WASHER PACKING NUT	85148R	See step 22	-	-
23	REAR WIPER LINK ASSEMBLY	85160R	See step 23	-	-
24	REAR WIPER MOTOR ASSEMBLY	85110R	-	-	-
25	BACK WINDOW LOCK ASSEMBLY	69370E	-	-	-
26	POWER BACK DOOR UNIT ASSEMBLY LH	68920A	See step 26	-	-
27	POWER BACK DOOR UNIT ASSEMBLY RH	68910B	See step 26	-	-
28	BACK DOOR NO. 4 SERVICE HOLE COVER	67768C	-	-	-
29	BACK DOOR NO. 3 SERVICE HOLE COVER	67767B	-	-	-
30	POWER BACK DOOR SENSOR ASSEMBLY LH	84280D	-	-	-
31	POWER BACK DOOR SENSOR ASSEMBLY RH	84270G	-	-	-

Fig 4: Rear Door Opening Trim Weatherstrip Disassembly Components (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
32	BACK DOOR LOWER DAMPER STAY BRACKET LH	68948	-	-	-
33	BACK DOOR LOWER DAMPER STAY BRACKET RH	68947	-	-	-
34	BACK DOOR UPPER DAMPER STAY BRACKET LH	68946	-	-	-
35	BACK DOOR UPPER DAMPER STAY BRACKET RH	68945	-	-	-
36	REAR SPOILER SUB-ASSEMBLY	76085	-	-	-
37	BACK WINDOW STAY ASSEMBLY LH	68940	See step 37	-	-
38	BACK WINDOW STAY ASSEMBLY RH	68930	See step 37	-	-
39	BACK DOOR STAY BOLT	68961	-	-	-
40	BACK DOOR GLASS	68131	See step 40	-	-
41	BACK DOOR NO. 2 WEATHERSTRIP	67882C	-	-	-

•

Non-reusable part

Fig 5: Rear Door Opening Trim Weatherstrip Disassembly Components (5 Of 6)

Procedure		Part Name Code
42	BACK DOOR NO. 1 SERVICE HOLE COVER	67765A	-	-	-
43	BACK DOOR SIDE GARNISH LH	67938A	See step 43	-	-
44	BACK DOOR OUTSIDE LOWER GARNISH SUB-ASSEMBLY LH	76806	See step 44	-	-
45	HOLE PLUG	-	-	-	-
46	BACK DOOR NO. 5 SERVICE HOLE COVER	67769B	-	-	-
47	REAR LICENSE LIGHT COVER	75132A	See step 47	-	-
48	REAR LIGHT ASSEMBLY	81580A	See step 48	-	-
49	NO. 1 CAMERA CLEANER NOZZLE ASSEMBLY	867F0A	See step 49	-	-
50	REAR TELEVISION CAMERA ASSEMBLY	86790D	-	-	-
51	BACK DOOR OPENER SWITCH ASSEMBLY	84840G	-	-	-
52	BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY	76801D	See step 52	-	-
53	CUSHION	-	-	-	-
54	HOLE PLUG	-	-	-	-

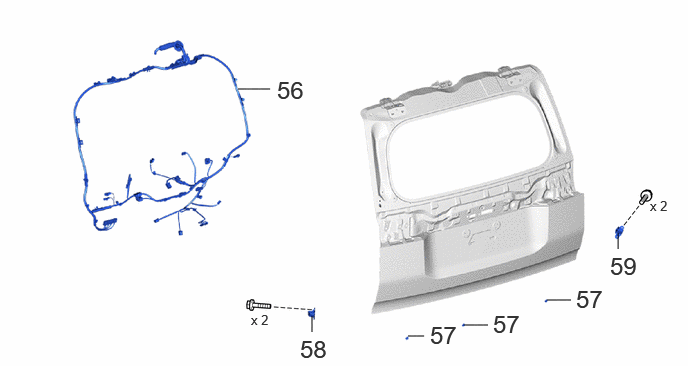

Fig 6: Rear Door Opening Trim Weatherstrip Disassembly Components (6 Of 6)

Procedure		Part Name Code
55	NO. 1 BACK DOOR WIRE	82184	-	-	-
56	DOOR DUST PROOF SEAL	67837L	-	-	-
57	BACK DOOR SIDE MALE STOPPER LH	69462	-	-	-
58	BACK DOOR SIDE MALE STOPPER RH	69461	-	-	-
