Caution / Notice / Hint

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during rear door disassembly/reassembly are shown below.

NECESSARY PROCEDURE AFTER PARTS REMOVED/INSTALLED/REPLACED

Replaced Part or Performed Procedure	Necessary Procedures	Effect/Inoperative Function when Necessary Procedures are not Performed	Link
Rear door window regulator sub-assembly LH Rear door window regulator sub-assembly RH Rear door glass sub-assembly LH Rear door glass sub-assembly RH Rear door glass run LH Rear door glass run RH	Initialize power window control system	Auto up and down function Jam protection function Catch protection function Remote control function Key-linked function Wireless transmitter-linked function Key-off operation function Window open warning function	Refer to REGISTRATION [12/2023 - ]

HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Lighting system (EXT) Cornering lights	Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more.	Refer to INITIALIZATION [12/2023 - ]
Front camera system		Refer to INITIALIZATION [12/2023 - ]

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Power back door system	Fully close the back door by hand. HINT: Initialization is not necessary if the above procedures are performed while the back door is closed.	Refer to INITIALIZATION [12/2023 - ]
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

Use the same procedure for the LH side and RH side.
The procedure below is for the LH side.

COMPONENTS (DISASSEMBLY)

Fig 1: Rear Door Disassembly Components (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
1	PRECAUTION	-	See step 1	-	-
2	DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL	-	-	-	-
3	REAR DOOR UPPER TRIM COVER LH	67786D	See step 3	-	-
4	REAR DOOR ARMREST COVER LH	74222C	See step 4	-	-
5	COURTESY LIGHT ASSEMBLY	81230	See step 5	-	-
6	REAR DOOR TRIM BOARD SUB-ASSEMBLY LH	67604	-	-	-
7	REAR DOOR INNER GLASS WEATHERSTRIP LH	68174	-	-	-
8	REAR DOOR NO. 1 VENT SEAL LH	67848A	-	-	-
9	REAR DOOR REAR BELT SEAL LH	68199	-	-	-

Fig 2: Rear Door Disassembly Components (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
10	REAR DOOR SERVICE HOLE COVER LH	67842E	See step 10	-	-
11	REAR DOOR FRAME GARNISH LH	67674A	-	-	-
12	REAR DOOR GLASS RUN LH	68152C	-	-	-
13	REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY LH	67408E	See step 13	-	-
14	REAR DOOR REAR WINDOW FRAME MOULDING LH	75766C	-	-	-
15	REAR DOOR QUARTER WINDOW GLASS LH	68124C	-	-	-
16	REAR DOOR QUARTER WINDOW WEATHERSTRIP LH	68189	-	-	-
17	REAR DOOR GLASS SUB-ASSEMBLY LH	68104	See step 17	-	-
18	REAR DOOR WINDOW REGULATOR ASSEMBLY	-	-	-	-

*1	BUTYL TAPE	-	-
•	Non-reusable part	-	-

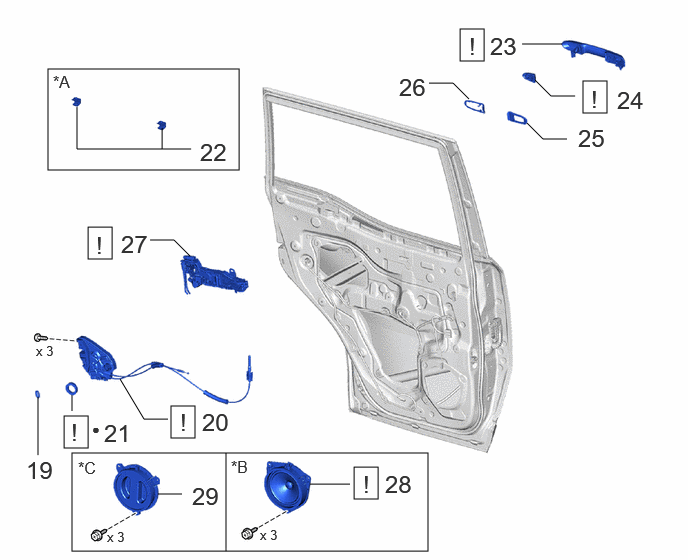

Fig 3: Rear Door Disassembly Components (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
19	REAR DOOR LOCK CHILD PROTECTION COVER LH	67836H	-	-	-
20	REAR DOOR LOCK ASSEMBLY LH	69340	See step 20	-	-
21	DOOR LOCK WIRING HARNESS SEAL	69318D	See step 21	-	-
22	CURTAIN HOOK LH	65923M	-	-	-
23	REAR DOOR OUTSIDE HANDLE ASSEMBLY LH	69240	See step 23	-	-
24	REAR DOOR OUTSIDE HANDLE COVER LH	69227L	See step 24	-	-
25	REAR DOOR OUTSIDE NO. 1 HANDLE PAD LH	69252B	-	-	-
26	REAR DOOR OUTSIDE NO. 2 HANDLE PAD LH	69254B	-	-	-
27	REAR DOOR OUTSIDE HANDLE FRAME SUB-ASSEMBLY LH	69204A	See step 27	-	-
28	REAR SPEAKER ASSEMBLY	86160B	See step 28	-	-
29	REAR DOOR SPEAKER COVER	86262D	-	-	-

*A	w/ Sunshade	*B	for 10 Speakers
*C	for 21 Speakers	-	-
•	Non-reusable part	-	-

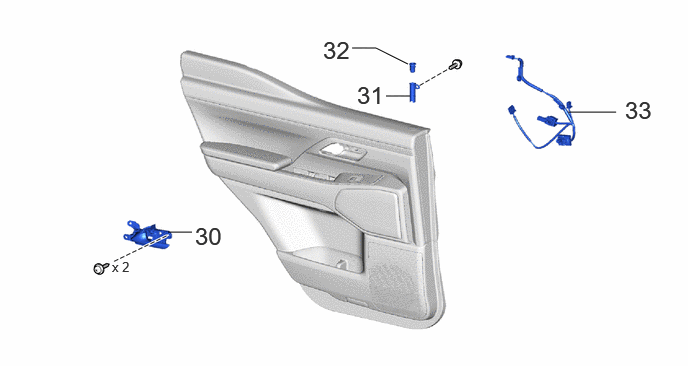

Fig 4: Rear Door Disassembly Components (4 Of 6)

Procedure		Part Name Code
30	REAR DOOR INSIDE HANDLE SUB-ASSEMBLY LH	69206C	-	-	-
31	REAR DOOR LOCK CONTROL KNOB HOLDER	69751H	-	-	-
32	REAR DOOR LOCK CONTROL KNOB BEZEL LH	69762B	-	-	-
33	REAR DOOR WIRE RH	82153A	-	-	-

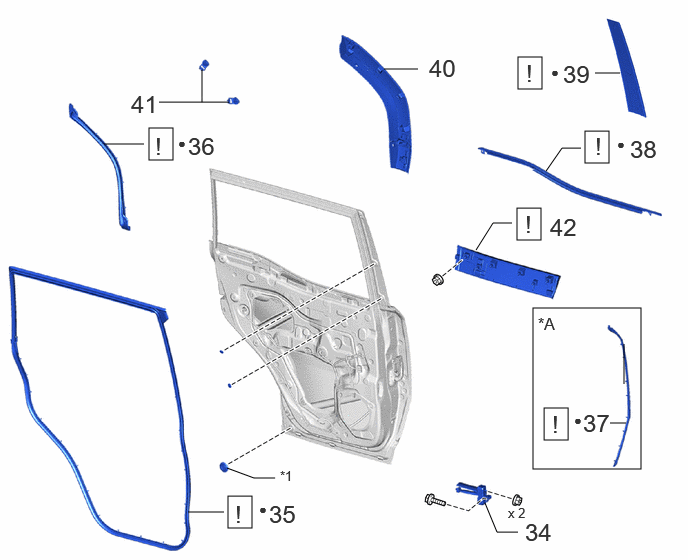

Fig 5: Rear Door Disassembly Components (5 Of 6)

Procedure		Part Name Code
34	REAR DOOR CHECK ASSEMBLY LH	68640A	-	-	-
35	REAR DOOR WEATHERSTRIP LH	67872	See step 35	-	-
36	REAR DOOR NO. 2 WEATHERSTRIP LH	67888A	See step 36	-	-
37	REAR DOOR NO. 3 WEATHERSTRIP LH	67896	See step 37	-	-
38	REAR DOOR BELT MOULDING LH	75722A	See step 38	-	-
39	REAR DOOR WINDOW FRAME MOULDING LH (CENTER PILLAR SIDE)	75762B	See step 39	-	-
40	REAR DOOR MOULDING OUTSIDE LH	75742	-	-	-
41	NO. 2 OUTSIDE MOULDING RETAINER	75393	-	-	-
42	REAR DOOR LOWER OUTSIDE MOULDING SUB-ASSEMBLY LH	75078	See step 42	-	-

*A	w/ Weatherstrip	-	-
*1	HOLE PLUG	-	-
•	Non-reusable part	-	-

Fig 6: Rear Door Disassembly Components (6 Of 6)

Procedure		Part Name Code
43	REAR DOOR PANEL CUSHION	67003C	-	-	-
44	HOLE PLUG	-	-	-	-
45	REAR DOOR DUST PROOF SEAL	67837C	-	-	-
46	SCREW GROMMET	-	-	-	-
47	NO. 2 BLACK OUT TAPE LH	75924C	See step 47	-	-
48	REAR DOOR OUTSIDE STRIPE LH	75988E	See step 48	-	-
49	NO. 4 BLACK OUT TAPE LH	75928C	See step 49	-	-
50	REAR DOOR LOWER OUTSIDE STRIPE LH	75978H	See step 50	-	-

•

Non-reusable part
