On-Vehicle Inspection [12/2023 - ]: Procedure

INSPECT HOOD SUB-ASSEMBLY

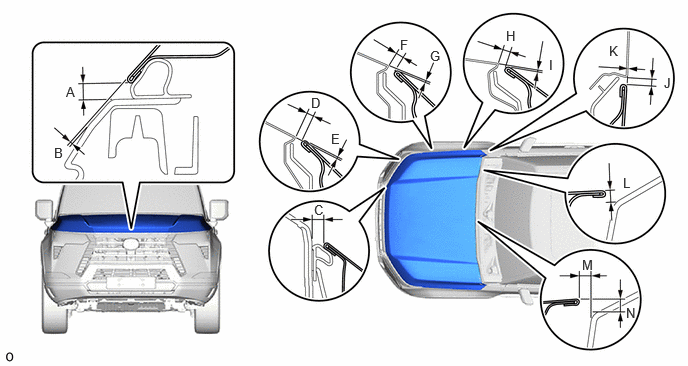

Check that the clearance measurement of areas "A" to "N" are within the standard ranges.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

STANDARD CLEARANCE

Area	Measurement	Area	Measurement
A	6.85 mm (0.270 in.)	B	1.45 mm (0.057 in.)
C	6.85 mm (0.270 in.)	D	2.9 to 5.9 mm (0.114 to 0.232 in.)
E	-0.9 to 2.1 mm (-0.0354 to 0.0827 in.)	F	4.4 mm (0.173 in.)
G	0.6 mm (0.0236 in.)	H	2.9 to 5.9 mm (0.114 to 0.232 in.)
I	-0.7 to 2.3 mm (-0.0276 to 0.0906 in.)	J	3.7 mm (0.146 in.)
K	0 mm (0 in.)	L	7.1 mm (0.280 in.)
M	6.35 mm (0.250 in.)	N	7.65 mm (0.301 in.)

HINT:

If the result is not as specified, adjust the hood sub-assembly.
