Disassembly [12/2023 - ]: Procedure

  1. REMOVE HOOD INSULATOR
    1. GTY1217842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE HOOD STOPPER

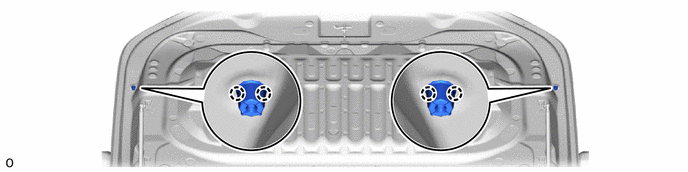

    1. GTY1217844Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE HOOD SUPPORT ASSEMBLY LH

    Refer to REMOVAL [12/2023 - ]

  4. REMOVE HOOD SUPPORT ASSEMBLY RH
    1. Use the same procedure described for the LH side.
  5. REMOVE HOOD STAY BRACKET LH
    1. GTY1217843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE HOOD STAY BRACKET RH
    1. Use the same procedure described for the LH side.
