Caution / Notice / Hint
HINT:
- Use the same procedure for the LH side and RH side.
- The procedure below is for the LH side.

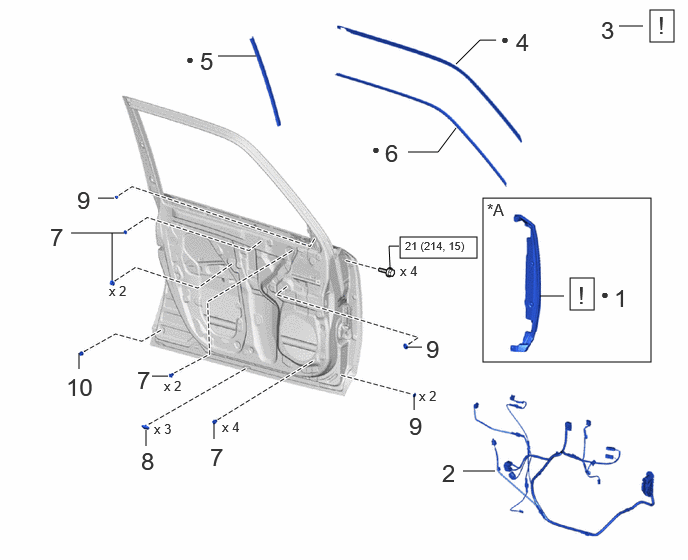

COMPONENTS (REASSEMBLY)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | FRONT DOOR NO. 3 WEATHERSTRIP LH | 67866A | See step 1 | - | - |
| 2 | FRONT DOOR WIRE LH | 82152 | - | - | - |
| 3 | PRECAUTION | - | See step 3 | - | - |
| 4 | FRONT DOOR OUTSIDE STRIPE LH | 75986F | - | - | - |
| 5 | FRONT DOOR NO. 2 STRIPE LH | 75976G | - | - | - |
| 6 | NO. 1 BLACK OUT TAPE LH | 75922M | - | - | - |
| 7 | SCREW GROMMET | - | - | - | - |
| 8 | FRONT DOOR DUST PROOF SEAL | 67837B | - | - | - |
| 9 | HOLE PLUG | - | - | - | - |
| 10 | FRONT DOOR PANEL CUSHION | 67001A | - | - | - |
| *A | w/ Weatherstrip | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 11 | FRONT DOOR LOWER OUTSIDE MOULDING SUB-ASSEMBLY LH | 75074 | - | - | - |
| 12 | FRONT DOOR WINDOW FRAME MOULDING LH (CENTER PILLAR SIDE) | 75756D | See step 12 | - | - |
| 13 | FRONT DOOR BELT MOULDING LH | 75712B | - | - | - |
| 14 | FRONT DOOR FRONT LOWER FRAME UPPER COVER LH | 67496C | See step 14 | - | - |
| 15 | FRONT DOOR WEATHERSTRIP LH | 67862 | See step 15 | - | - |
| 16 | FRONT DOOR CHECK ASSEMBLY LH | 68620 | See step 16 | - | - |
| *1 | HOLE PLUG | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent | * | Precoated part |

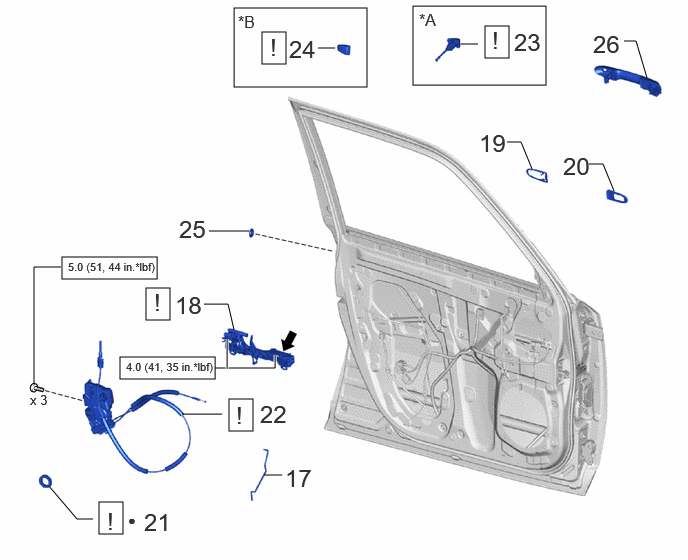

| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 17 | FRONT DOOR LOCK OPEN ROD LH | 69312 | - | - | - |
| 18 | FRONT DOOR OUTSIDE HANDLE FRAME SUB-ASSEMBLY LH | 69202A | See step 18 | - | - |
| 19 | FRONT DOOR REAR OUTSIDE HANDLE PAD | 69242E | - | - | - |
| 20 | FRONT DOOR FRONT OUTSIDE HANDLE PAD | 69241H | - | - | - |
| 21 | DOOR LOCK WIRING HARNESS SEAL | 69318C | See step 21 | - | - |
| 22 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY LH | 69040A | See step 22 | - | - |
| 23 | FRONT DOOR LOCK CYLINDER ASSEMBLY | - | See step 23 | - | - |
| 24 | FRONT DOOR OUTSIDE HANDLE COVER | 69217D | See step 24 | - | - |
| 25 | HOLE PLUG | - | - | - | - |
| 26 | FRONT DOOR OUTSIDE HANDLE ASSEMBLY LH | 69220 | - | - | - |
| *A | for Driver Side | *B | for Front Passenger Side |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| MP Grease | - | - |

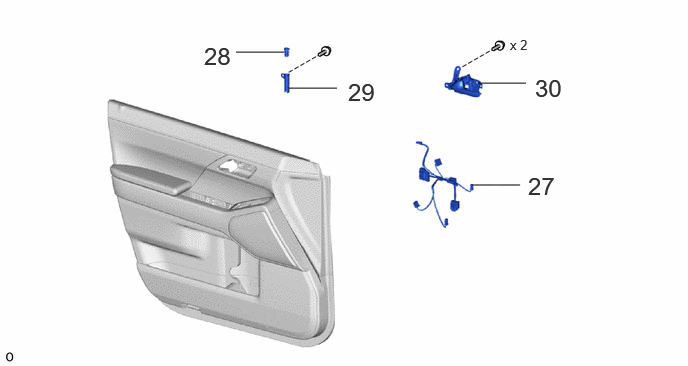

| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 27 | FRONT DOOR WIRE LH | 82152A | - | - | - |
| 28 | DOOR LOCK CONTROL KNOB BEZEL LH | 69762A | - | - | - |
| 29 | FRONT DOOR LOCK CONTROL KNOB HOLDER | 69751E | - | - | - |
| 30 | FRONT DOOR INSIDE HANDLE SUB-ASSEMBLY LH | 69206B | - | - | - |

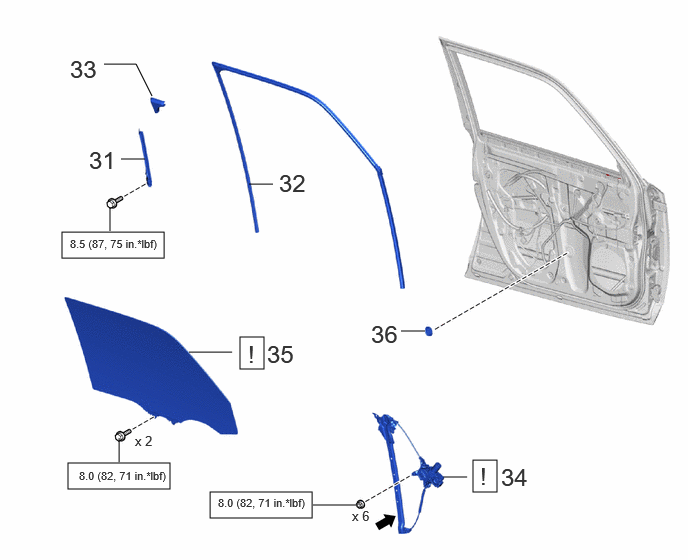

| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 31 | FRONT DOOR REAR LOWER FRAME SUB-ASSEMBLY LH | 67404F | - | - | - |
| 32 | FRONT DOOR GLASS RUN LH | 68151E | - | - | - |
| 33 | DOOR FRAME GARNISH LH | 67664C | - | - | - |
| 34 | FRONT DOOR WINDOW REGULATOR WITH MOTOR ASSEMBLY | - | See step 34 | - | - |
| 35 | FRONT DOOR GLASS SUB-ASSEMBLY LH | 68102 | See step 35 | - | - |
| 36 | HOLE PLUG | - | - | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | MP Grease |

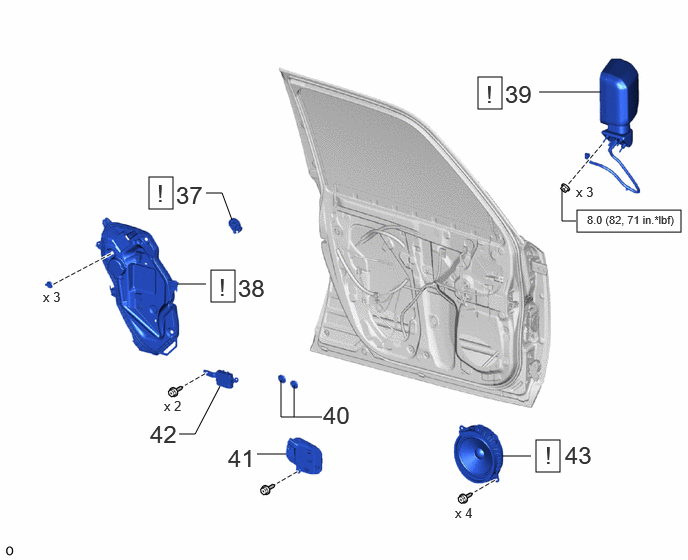

| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 37 | SIDE AIRBAG PRESSURE SENSOR LH | 8983AA | See step 37 | - | - |
| 38 | FRONT DOOR SERVICE HOLE COVER LH | 67832 | See step 38 | - | - |
| 39 | OUTER REAR VIEW MIRROR ASSEMBLY LH | 87940 | See step 39 | - | - |
| 40 | HOLE PLUG | - | - | - | - |
| 41 | OUTER MIRROR INSTALL HOLE COVER LH | 87964 | - | - | - |
| 42 | OUTER MIRROR CONTROL ECU ASSEMBLY LH | 89430A | - | - | - |
| 43 | FRONT NO. 1 SPEAKER ASSEMBLY | 86160 | See step 43 | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

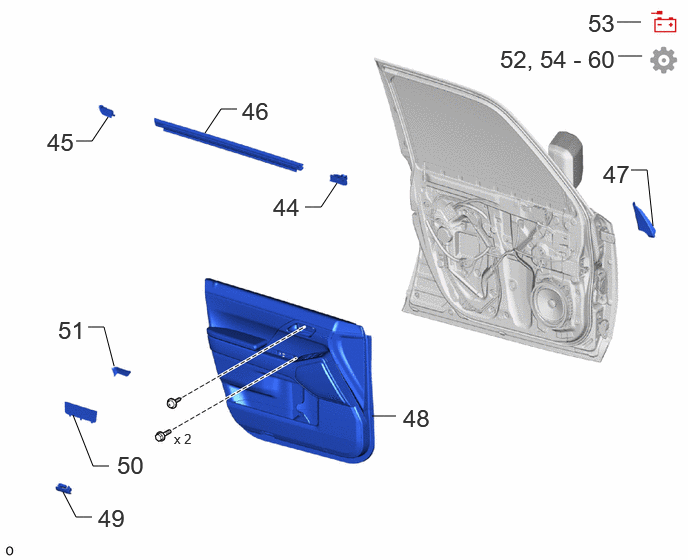

| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 44 | FRONT DOOR REAR OUTSIDE SEAL LH | 67852D | - | - | - |
| 45 | FRONT DOOR PANEL PROTECTOR LH | 67856B | - | - | - |
| 46 | FRONT DOOR INNER GLASS WEATHERSTRIP LH | 68172A | - | - | - |
| 47 | FRONT DOOR LOWER FRAME BRACKET GARNISH LH | 67492A | - | - | - |
| 48 | FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH | 67602 | - | - | - |
| 49 | COURTESY LIGHT ASSEMBLY | 81230 | - | - | - |
| 50 | DOOR ARMREST COVER SUB-ASSEMBLY LH | 74038C | - | - | - |
| 51 | FRONT DOOR UPPER TRIM COVER LH | 67782 | - | - | - |
| 52 | ADJUST FRONT DOOR LH | - | - | - | See step 52 |
| 53 | CONNECT CABLE TO NEGATIVE BATTERY TERMINAL | - | - | - | - |
| 54 | INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL | - | - | - | See step 54 |
| 55 | CHECK OUTER REAR VIEW MIRROR OPERATION | - | - | - | See step 55 |
| 56 | PERFORM CALIBRATION | - | - | - | See step 56 |
| 57 | INITIALIZE POWER WINDOW CONTROL SYSTEM | - | - | - | See step 57 |
| 58 | INSPECT POWER WINDOW OPERATION | - | - | - | See step 58 |
| 59 | INSPECT POWER DOOR LOCK OPERATION | - | - | - | See step 59 |
| 60 | INSPECT SRS WARNING LIGHT | - | - | - | See step 60 |
