The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during front door disassembly/reassembly are shown below.

NECESSARY PROCEDURE AFTER PARTS REMOVED/INSTALLED/REPLACED

Replaced Part or Performed Procedure	Necessary Procedures	Effect/Inoperative Function when Necessary Procedures are not Performed	Link
Side television camera assembly LH (Including removal and installation) Side television camera assembly RH (Including removal and installation) Outer rear view mirror assembly with cover LH (Including removal and installation) Outer rear view mirror assembly with cover RH (Including removal and installation)	Side television camera view adjustment	Panoramic view monitor system Multi-terrain monitor system	Refer to BEFORE STARTING ADJUSTMENT [12/2023 - ]
Front television camera assembly, front bumper assembly or radiator grille Rear television camera assembly Side television camera assembly LH or outer rear view mirror assembly LH Side television camera assembly RH or outer rear view mirror assembly RH	Television camera view adjustment HINT: Replacement or removal and installation of 2 or more parts	Panoramic view monitor system Multi-terrain monitor system	Refer to BEFORE STARTING ADJUSTMENT [12/2023 - ]
Front door window regulator sub-assembly LH Front door window regulator sub-assembly RH Front door glass sub-assembly LH Front door glass sub-assembly RH Front door glass run LH Front door glass run RH	Initialize power window control system	Auto up and down function Jam protection function Catch protection function Remote control function Key-linked function Wireless transmitter-linked function Key-off operation function Window open warning function	Refer to REGISTRATION [12/2023 - ]

HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Lighting system (EXT) Cornering lights	Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more.	Refer to INITIALIZATION [12/2023 - ]
Front camera system		Refer to INITIALIZATION [12/2023 - ]

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Power back door system	Fully close the back door by hand. HINT: Initialization is not necessary if the above procedures are performed while the back door is closed.	Refer to INITIALIZATION [12/2023 - ]
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

Use the same procedure for the LH side and RH side.
The procedure below is for the LH side.

COMPONENTS (DISASSEMBLY)

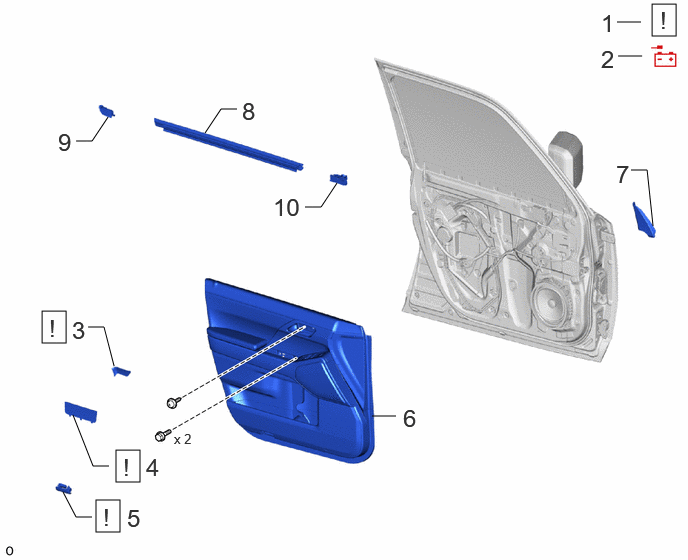

Fig 1: Front Door Disassembly Components (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
1	PRECAUTION	-	See step 1	-	-
2	DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL	-	-	-	-
3	FRONT DOOR UPPER TRIM COVER LH	67782	See step 3	-	-
4	DOOR ARMREST COVER SUB-ASSEMBLY LH	74038C	See step 4	-	-
5	COURTESY LIGHT ASSEMBLY	81230	See step 5	-	-
6	FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH	67602	-	-	-
7	FRONT DOOR LOWER FRAME BRACKET GARNISH LH	67492A	-	-	-
8	FRONT DOOR INNER GLASS WEATHERSTRIP LH	68172A	-	-	-
9	FRONT DOOR PANEL PROTECTOR LH	67856B	-	-	-
10	FRONT DOOR REAR OUTSIDE SEAL LH	67852D	-	-	-

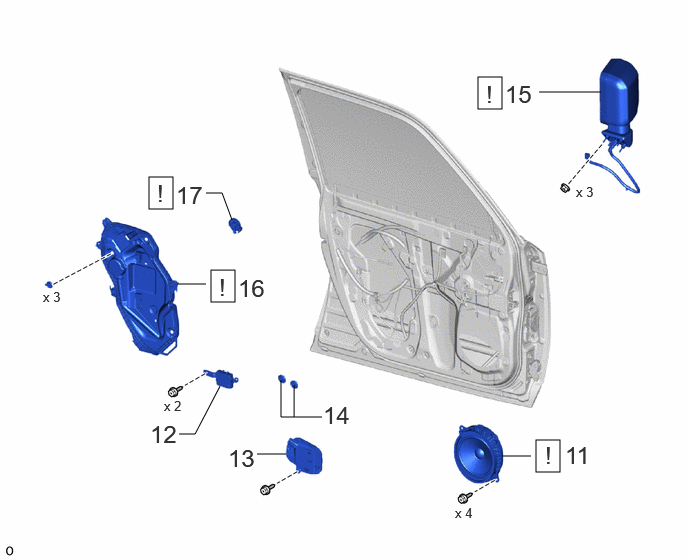

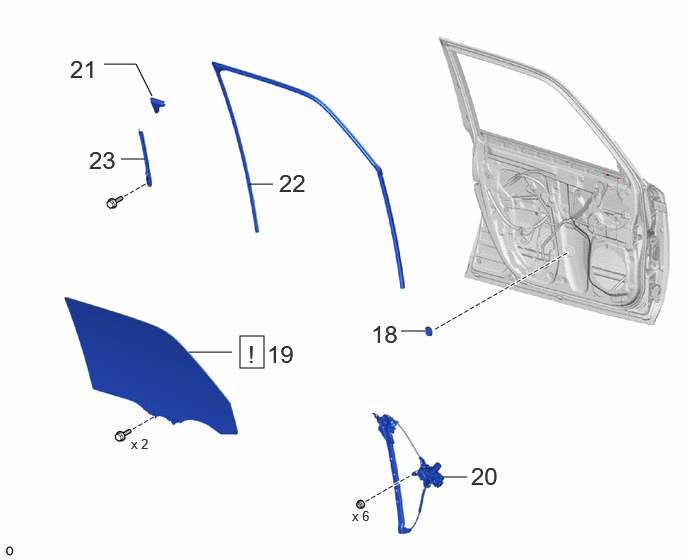

Fig 2: Front Door Disassembly Components (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
11	FRONT NO. 1 SPEAKER ASSEMBLY	86160	See step 11	-	-
12	OUTER MIRROR CONTROL ECU ASSEMBLY LH	89430A	-	-	-
13	OUTER MIRROR INSTALL HOLE COVER LH	87964	-	-	-
14	HOLE PLUG	-	-	-	-
15	OUTER REAR VIEW MIRROR ASSEMBLY LH	87940	See step 15	-	-
16	FRONT DOOR SERVICE HOLE COVER LH	67832	See step 16	-	-
17	SIDE AIRBAG PRESSURE SENSOR LH	8983AA	See step 17	-	-

Fig 3: Front Door Disassembly Components (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
18	HOLE PLUG	-	-	-	-
19	FRONT DOOR GLASS SUB-ASSEMBLY LH	68102	See step 19	-	-
20	FRONT DOOR WINDOW REGULATOR WITH MOTOR ASSEMBLY	-	-	-	-
21	DOOR FRAME GARNISH LH	67664C	-	-	-
22	FRONT DOOR GLASS RUN LH	68151E	-	-	-
23	FRONT DOOR REAR LOWER FRAME SUB-ASSEMBLY LH	67404F	-	-	-

Fig 4: Front Door Disassembly Components (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
24	FRONT DOOR INSIDE HANDLE SUB-ASSEMBLY LH	69206B	-	-	-
25	FRONT DOOR LOCK CONTROL KNOB HOLDER	69751E	-	-	-
26	DOOR LOCK CONTROL KNOB BEZEL LH	-	-	-	-
27	FRONT DOOR WIRE LH	82152A	-	-	-

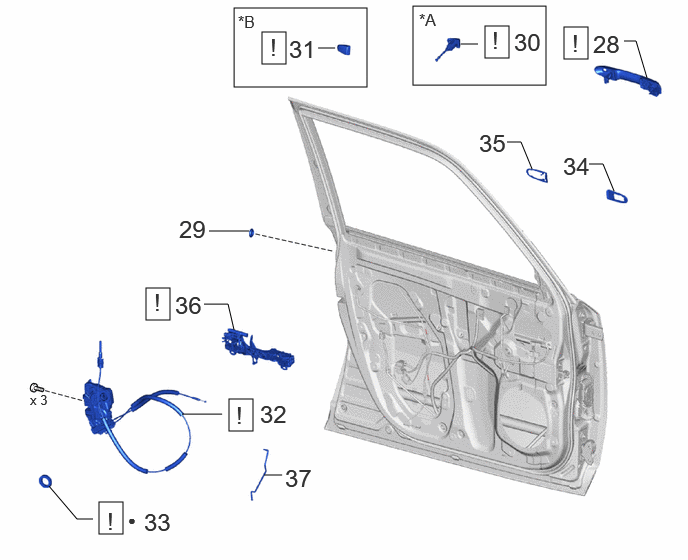

Fig 5: Front Door Disassembly Components (5 Of 7)

Procedure		Part Name Code
28	FRONT DOOR OUTSIDE HANDLE ASSEMBLY LH	69220	See step 28	-	-
29	HOLE PLUG	-	-	-	-
30	FRONT DOOR LOCK CYLINDER ASSEMBLY	-	See step 30	-	-
31	FRONT DOOR OUTSIDE HANDLE COVER	69217D	See step 31	-	-
32	FRONT DOOR LOCK WITH MOTOR ASSEMBLY LH	69040A	See step 32	-	-
33	DOOR LOCK WIRING HARNESS SEAL	69318C	See step 33	-	-
34	FRONT DOOR FRONT OUTSIDE HANDLE PAD	69241H	-	-	-
35	FRONT DOOR REAR OUTSIDE HANDLE PAD	69242E	-	-	-
36	FRONT DOOR OUTSIDE HANDLE FRAME SUB-ASSEMBLY LH	69202A	See step 36	-	-
37	FRONT DOOR LOCK OPEN ROD LH	69312	-	-	-

*A	for Driver Side	*B	for Front Passenger Side
•	Non-reusable part	-	-

Fig 6: Front Door Disassembly Components (6 Of 7)

Procedure		Part Name Code
38	FRONT DOOR CHECK ASSEMBLY LH	68620	-	-	-
39	FRONT DOOR WEATHERSTRIP LH	67862	See step 39	-	-
40	FRONT DOOR FRONT LOWER FRAME UPPER COVER LH	67496C	See step 40	-	-
41	FRONT DOOR BELT MOULDING LH	75712B	See step 41	-	-
42	FRONT DOOR WINDOW FRAME MOULDING LH (CENTER PILLAR SIDE)	75756D	See step 42	-	-
43	FRONT DOOR LOWER OUTSIDE MOULDING SUB-ASSEMBLY LH	75074	See step 43	-	-

*1	HOLE PLUG	-	-
•	Non-reusable part	-	-

Fig 7: Front Door Disassembly Components (7 Of 7)

Procedure		Part Name Code
44	FRONT DOOR PANEL CUSHION	67001A	-	-	-
45	HOLE PLUG	-	-	-	-
46	FRONT DOOR DUST PROOF SEAL	67837B	-	-	-
47	SCREW GROMMET	-	-	-	-
48	NO. 1 BLACK OUT TAPE LH	75922M	See step 48	-	-
49	FRONT DOOR NO. 2 STRIPE LH	75976G	See step 49	-	-
50	FRONT DOOR OUTSIDE STRIPE LH	75986F	See step 50	-	-
51	FRONT DOOR WIRE LH	82152	-	-	-
52	FRONT DOOR NO. 3 WEATHERSTRIP LH	67866A	See step 52	-	-

*A	w/ Weatherstrip	-	-
•	Non-reusable part	-	-
