Adjustment [12/2023 - ]: Procedure

INSPECT FRONT DOOR

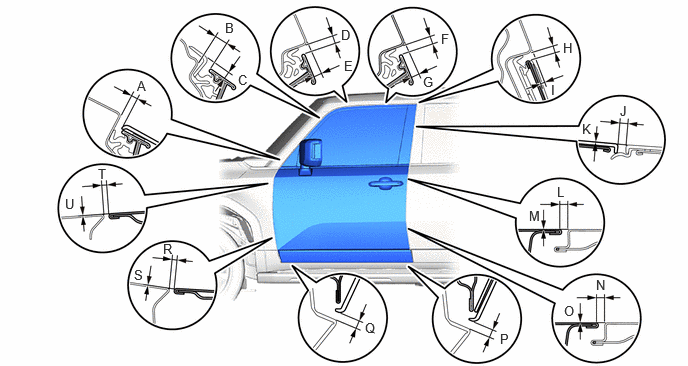

Check that the clearance measurements of areas "A" to "U" are within the standard ranges.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

STANDARD CLEARANCE:

Area	Measurement	Area	Measurement
A	3.15 to 6.55 mm (0.124 to 0.258 in.)	B	3.65 to 7.65 mm (0.144 to 0.301 in.)
C	4.05 to 8.05 mm (0.159 to 0.317 in.)	D	3.9 to 6.9 mm (0.154 to 0.272 in.)
E	4.1 to 7.1 mm (0.161 to 0.280 in.)	F	3.9 to 6.9 mm (0.154 to 0.272 in.)
G	3.7 to 6.7 mm (0.146 to 0.264 in.)	H	4.15 to 7.55 mm (0.163 to 0.297 in.)
I	0.95 to 4.95 mm (0.037 to 0.195 in.)	J	2.5 to 6.5 mm (0.0984 to 0.2559 in.)
K	-2.0 to 2.0 mm (-0.0787 to 0.0787 in.)	L	3.0 to 5.4 mm (0.118 to 0.213 in.)
M	-1.2 to 1.2 mm (-0.0472 to 0.0472 in.)	N	3.0 to 5.4 mm (0.118 to 0.213 in.)
O	-1.2 to 1.2 mm (-0.0472 to 0.0472 in.)	P	3.5 to 8.5 mm (0.138 to 0.335 in.)
Q	3.5 to 8.5 mm (0.138 to 0.335 in.)	R	2.5 to 5.5 mm (0.0984 to 0.2165 in.)
S	-1.5 to 1.5 mm (-0.0591 to 0.0591 in.)	T	2.5 to 5.5 mm (0.0984 to 0.2165 in.)
U	-1.5 to 1.5 mm (-0.0591 to 0.0591 in.)	-	-

PRECAUTION

WARNING:

Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

WARNING:

Wait at least 60 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
If the airbag deploys for any reason, it may cause a serious accident.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ADJUST FRONT DOOR LH

NOTE:

Make sure to turn the ignition switch off when adjusting door lock strikers.

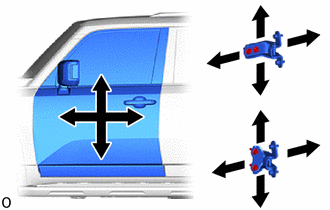

Using SST, loosen the 4 hinge bolts on the vehicle body and adjust the door position.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using SST, tighten the bolt hinge bolts after the adjustment.
Torque: 26.0 N*m (265 kgf*cm, 19 ft.*lbf)

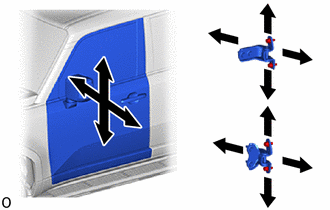

Using SST, loosen the 4 hinge bolts on the door and adjust the door position.

Tighten the 4 hinge bolts on the door after adjustment.
Torque: 21.0 N*m (214 kgf*cm, 15 ft.*lbf)

Detach the claw and remove the front door lock striker cover.

Using a T40 "TORX" socket wrench, slightly loosen the 2 striker mounting screws.

Using a brass bar and a hammer, hit the striker to adjust its position.
Using a T40 "TORX" socket wrench, tighten the 2 striker mounting screws after adjustments.
Torque: 23.0 N*m (235 kgf*cm, 17 ft.*lbf)
Attach the claw and install the front door lock striker cover.
