Removal [12/2023 - ]: Procedure

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Lower

   Extend

   1. Adjust steering wheel position by the below procedure.

      1. Release the tilt and telescopic lever and fully extend and lower the steering column sub-assembly.

      2. Lock the tilt and telescopic lever.

NOTE: Removing the lower steering column cover sub-assembly in the incorrect order will cause the parts to break.

1. for Power Tilt and Power Telescopic Steering Column:

   Refer to PROCEDURE - Step 4

2. for Manual Tilt and Manual Telescopic Steering Column:

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Turn the steering wheel assembly to the right and remove the screw.
   2. Turn the steering wheel assembly to the left and remove the screw.
   3. Remove the screw.

3. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Felt	-	-
   	Push Area	-	-

   1. Detach the claw and remove the lower steering column cover.
      NOTE:

      • Do not damage the tilt and telescopic lever.
      • Do not damage the felt part

Refer to PROCEDURE - Step 6

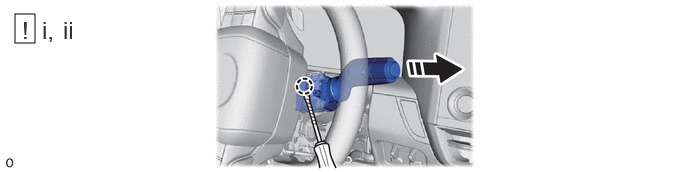

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this Direction

   -

   -

   1. Turn the steering wheel assembly to the right.
   2. Using a screwdriver with its tip wrapped with protective tape, disengage the claw and remove the windshield wiper switch assembly as shown in the illustration.
      NOTE:

      If the claw is pulled with excessive force, it may break.
