Removal [12/2023 - ]: Procedure

  1. REMOVE FRONT BUMPER ASSEMBLY

    Refer to REMOVAL [12/2023 - ]

  2. REMOVE HEADLIGHT WASHER COVER LH
    See step  1
  3. REMOVE HEADLIGHT WASHER COVER RH
    1. Use the same procedure described for the LH side.
  4. REMOVE HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY LH

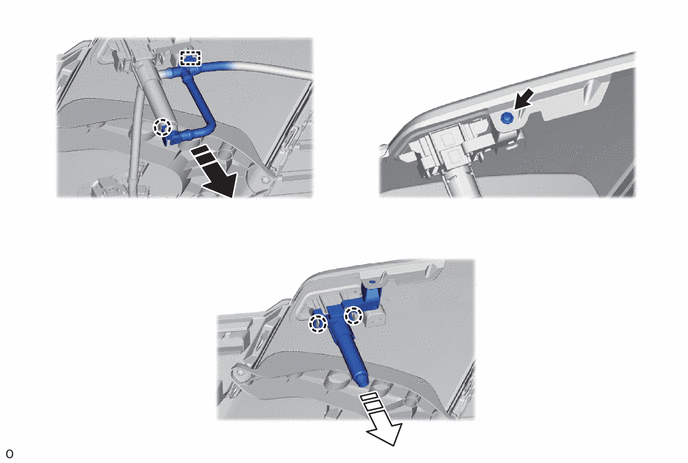

    1. GTY1218006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Disconnect in this Direction Remove in this Direction
  5. REMOVE HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY RH
    1. Use the same procedure described for the LH side.
  6. REMOVE NO. 2 WASHER BRACKET

    HINT:

    Perform this procedure only when replacement of the No. 2 washer bracket is necessary.

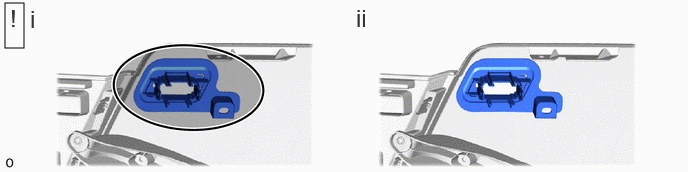

    1. GTY1212220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Heated Part - -
      1. Heat the front bumper assembly and No. 2 washer bracket using a heat light at the specified temperature for 3 to 5 minutes.

        Heating Temperature

        Item Temperature
        Front Bumper Assembly 20 to 30 °C (68 to 86 °F)
        No. 2 Washer Bracket
        WARNING:
        • Do not touch the heat light and heated parts.
        • Touching the heat light may result in burns.
        • Touching heated parts for a long time may result in burns.
        GTY812853Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Heated Part
        *b Heat Light
      2. Remove the No. 2 washer bracket.
  7. REMOVE WASHER BRACKET
    1. Use the same procedure described for the No. 2 washer bracket.
