Removal [12/2023 - ]: Procedure

  1. REMOVE HEADLIGHT WASHER COVER LH

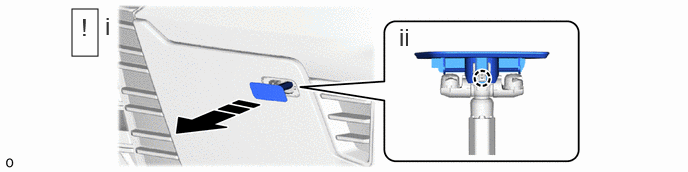

    1. GTY1214632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Pull out the headlight washer actuator sub-assembly LH.
      2. Disengage the claw and remove the headlight washer cover LH.
  2. REMOVE HEADLIGHT WASHER COVER RH
    1. Use the same procedure described for the LH side.
