Removal [12/2023 - ]: Procedure

  1. REMOVE NO. 1 ROOM LIGHT ASSEMBLY
    1. GTY1217327Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1) Remove in this Direction (2)
      Remove in this Direction (3) - -
      1. Using moulding remover D, detach the claw as shown in the illustration.
      2. Using moulding remover D, detach the claw as shown in the illustration.
      3. Detach the claw as shown in the illustration.
      4. Disconnect the connector and remove the No. 1 room light assembly.
  2. REMOVE NO. 2 ROOM LIGHT ASSEMBLY

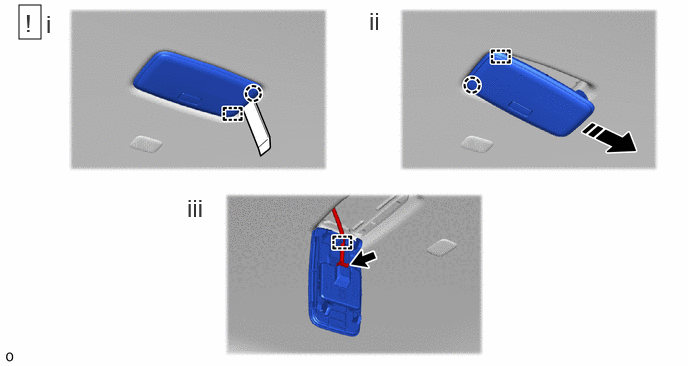

    1. GTY1215800Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Using moulding remover D, detach the claw and guide.
      2. Detach the claw and guide as shown in the illustration.
      3. Detach the clamp and disconnect the connector and remove the No. 2 room light assembly.
