Removal [12/2023 - ]: Procedure

  1. REMOVE MAP LIGHT ASSEMBLY

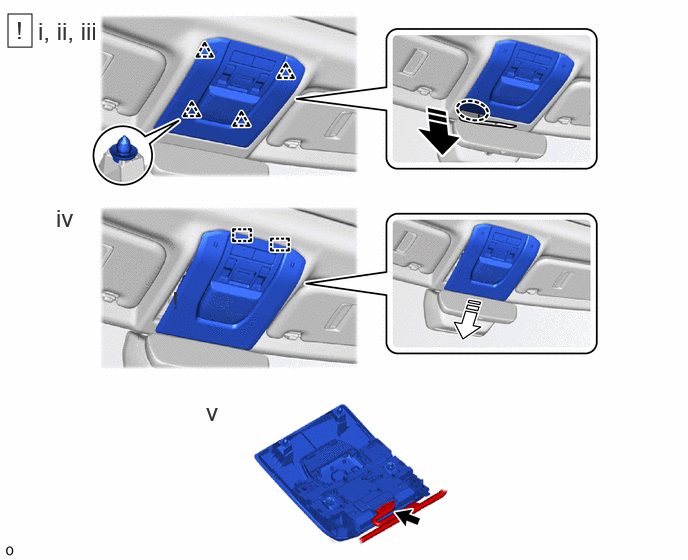

    1. GTY1213672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hands Here Remove in this Direction (1)
      Remove in this Direction (2) - -
      1. Insert moulding remover D in the position shown in the illustration.
      2. Place your hand in the gap as shown in the illustration.
      3. Pull in the removal direction (1) as shown in the illustration and detach the clip.
      4. Pull in the removal direction (2) as shown in the illustration and detach the guide and remove the map light assembly.
      5. Disconnect the connector.
