Removal [12/2023 - ]: Procedure

  1. Precaution
    WARNING:

    Be Sure To Read Precaution Thoroughly Before Servicing.

    GTY824211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Refer To Precaution [12/2023 - ]

    NOTE:

    After Turning The Ignition Switch Off, Waiting Time May Be Required Before Disconnecting The Cable From The Negative (-) Battery Terminal.

    Refer To Before Disconnecting Battery [12/2023 - ]
  2. Remove Instrument Panel Safety Pad Assembly

    Refer To Removal [12/2023 - ]

  3. Remove No. 3 Heater To Register Duct Sub-Assembly

    Refer To Procedure - Step 1

  4. Remove No. 2 Instrument Panel Wire

    Refer To Procedure - Step 2

  5. Remove Defroster Nozzle Assembly

    Refer To Procedure - Step 3

  6. Remove Navigation Antenna Assembly With Bracket

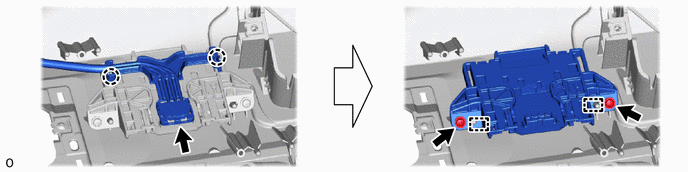

    1. GTY1217406Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. Remove Navigation Antenna Assembly

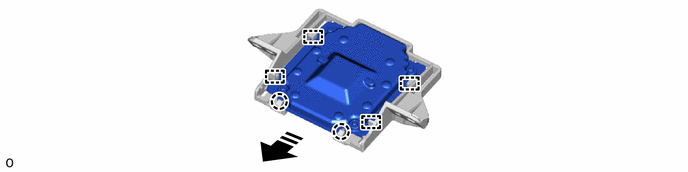

    1. GTY1214953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove In This Direction - -
