Parts Location [12/2023 - ]: Illustration

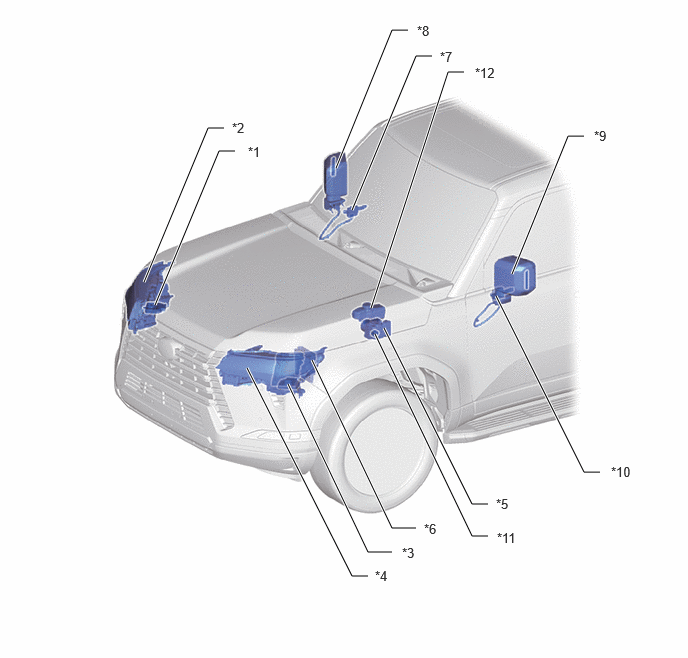

| *1 | HEADLIGHT ECU SUB-ASSEMBLY RH | *2 | HEADLIGHT ASSEMBLY RH |
| *3 | HEADLIGHT ECU SUB-ASSEMBLY LH | *4 | HEADLIGHT ASSEMBLY LH |
| *5 | BRAKE ACTUATOR ASSEMBLY (SKID CONTROL ECU) | *6 | ECM |
| *7 | OUTER MIRROR CONTROL ECU ASSEMBLY RH | *8 | OUTER REAR VIEW MIRROR ASSEMBLY RH - SIDE TURN SIGNAL LIGHT ASSEMBLY RH |
| *9 | OUTER MIRROR CONTROL ECU ASSEMBLY LH | *10 | OUTER REAR VIEW MIRROR ASSEMBLY LH - SIDE TURN SIGNAL LIGHT ASSEMBLY LH |
| *11 | VACUUM WARNING SWITCH ASSEMBLY | *12 | BRAKE MASTER CYLINDER SUB-ASSEMBLY - LEVEL WARNING SWITCH ASSEMBLY |
| *1 | REAR COMBINATION LIGHT ASSEMBLY LH - REAR COMBINATION LIGHT SOCKET AND WIRE LH - REAR COMBINATION LIGHT LENS AND BODY LH |
*2 | REAR COMBINATION LIGHT ASSEMBLY RH - REAR COMBINATION LIGHT SOCKET AND WIRE RH - REAR COMBINATION LIGHT LENS AND BODY RH |
| *3 | FUEL SUCTION WITH PUMP AND GAUGE TUBE ASSEMBLY - FUEL SUCTION PLATE SUB-ASSEMBLY - FUEL SENDER GAUGE ASSEMBLY |
*4 | FUEL LID LOCK CONTROL CABLE SUB-ASSEMBLY (FUEL LID OPEN SENSOR) |
| *A | w/ Headup Display | - | - |
| *1 | COMBINATION METER ASSEMBLY | *2 | RADIO AND DISPLAY RECEIVER ASSEMBLY |
| *3 | METER MIRROR SUB-ASSEMBLY | *4 | DLC3 |
| *5 | POWER DISTRIBUTION BOX ASSEMBLY - METER-IGR FUSE - ECU-DCC NO. 2 FUSE |
*6 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *7 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *8 | HAZARD WARNING SIGNAL SWITCH ASSEMBLY |
| *9 | STEREO COMPONENT AMPLIFIER ASSEMBLY | *10 | VOLTAGE INVERTER ASSEMBLY |
| *1 | STEERING PAD SWITCH ASSEMBLY | *2 | TRIP SWITCH - LIGHT CONTROL RHEOSTAT |
| *3 | MULTIPLEX NETWORK STEERING ECU | *4 | SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY |
| *5 | NO. 4 COMBINATION SWITCH ASSEMBLY | - | - |

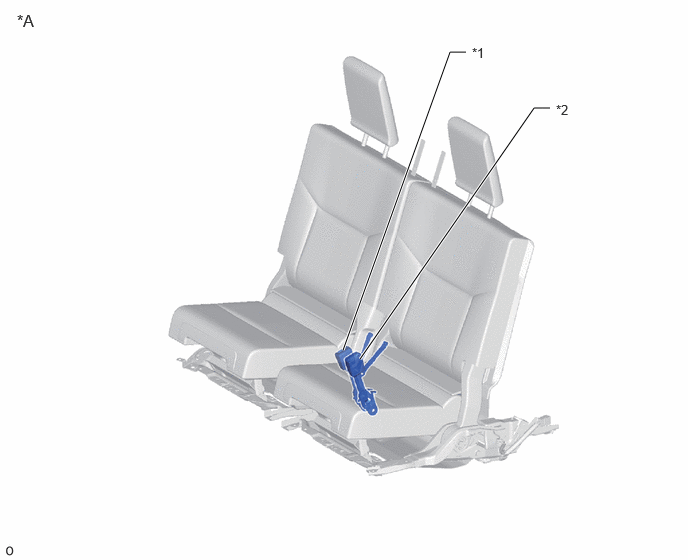

| *A | w/ Rear No. 2 Seat Belt Warning | - | - |
| *1 | REAR NO. 2 SEAT INNER BELT ASSEMBLY (for RH Side) | *2 | REAR NO. 2 SEAT INNER BELT ASSEMBLY LH (for LH Side) |
