DTC B1508-19: Turn Signal/Hazard Flasher Circuit Current Above Threshold [12/2023 - ]: Wiring Diagram

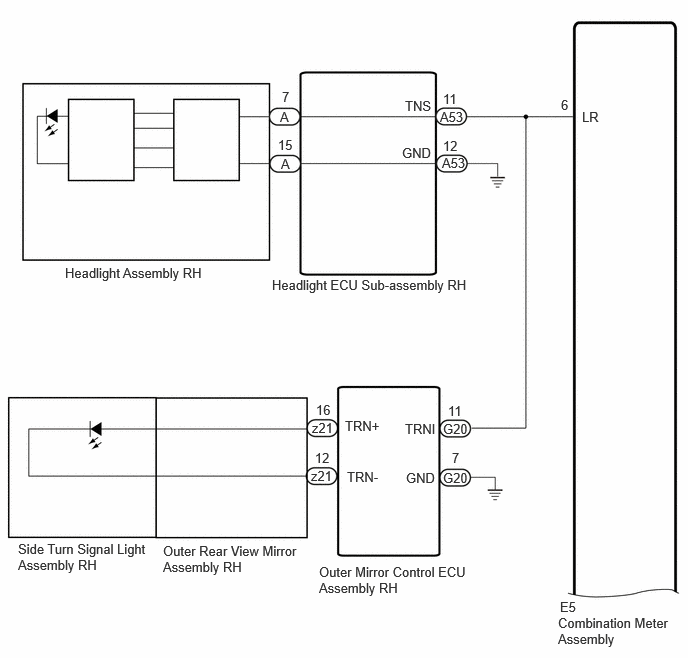

GTY1216040Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

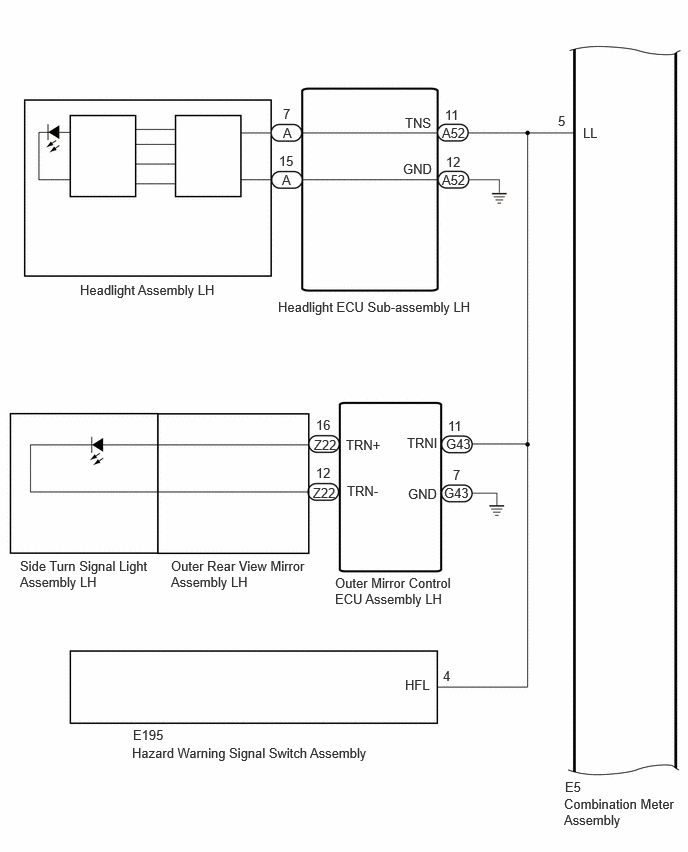

GTY1214353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

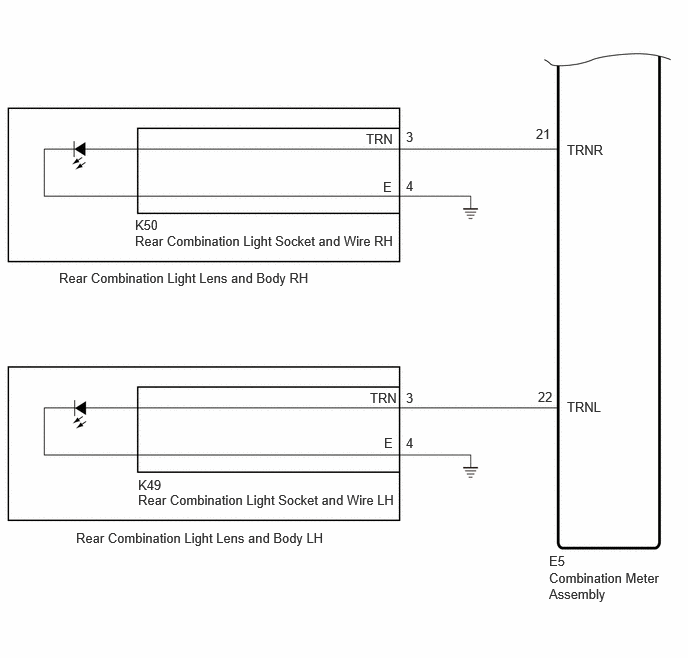

GTY1219354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
