Inspection [12/2023 - ]: Procedure

  1. INSPECT TRIP SWITCH
    1. Check the resistance.

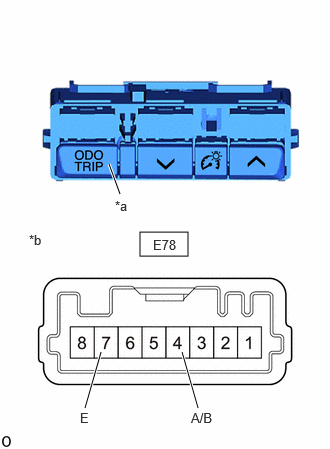

      GTY1212427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a ODO TRIP Switch
      *b Component without harness connected
      (Trip Switch)
      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        E78-4 (A/B) - E78-7 (E) ODO/TRIP switch pressed 15 Ω or less
        E78-4 (A/B) - E78-7 (E) ODO/TRIP switch not pressed 10 kΩ or higher

        If the result is not as specified, replace the trip switch.

    2. Check illumination.

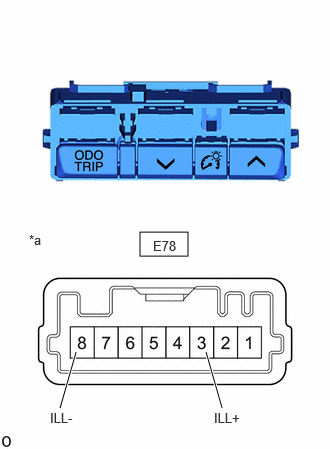

      GTY1218441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Trip Switch)
      1. Apply battery voltage to the connector and check the light illumination condition.

        OK

        Tester Connection Specified Condition
        E78-3 (ILL+) - Battery positive (+)
        E78-8 (ILL-) - Battery negative (-)        		 Illuminates

        If the result is not as specified, replace the trip switch.
