Caution / Notice / Hint
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during instrument panel safety pad assembly removal/installation are shown below.
HINT:
- When the cable is disconnected/reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
- Learning completes when vehicle is driven
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Lighting system (EXT) Cornering lights Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more. Refer to INITIALIZATION [12/2023 - ] Front camera system - Learning completes when vehicle is operated normally
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Power back door system Fully close the back door by hand.
HINT:
Initialization is not necessary if the above procedures are performed while the back door is closed.Refer to INITIALIZATION [12/2023 - ] Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized. -
- Learning completes when vehicle is driven

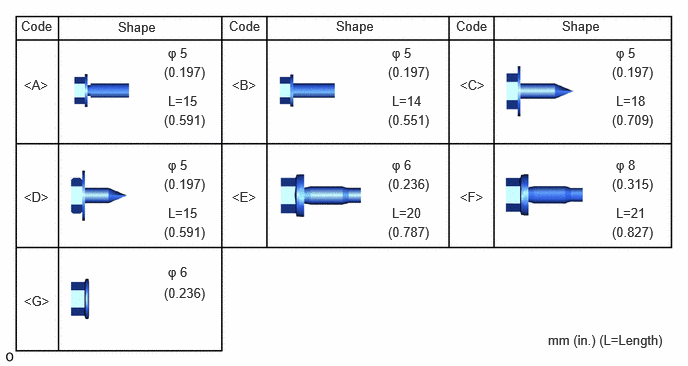

- All bolts, screws and nuts relevant to installing and removing the instrument panel are shown along with their alphabetical codes in the table.

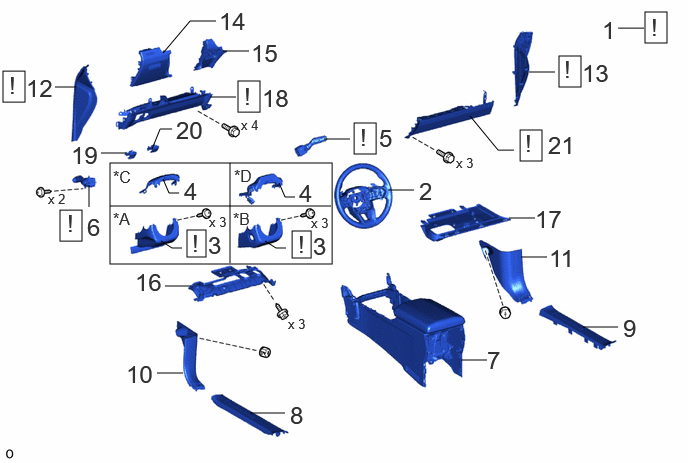

COMPONENTS (REMOVAL)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | PRECAUTION | - | See step 1 | - | - |
| 2 | STEERING WHEEL ASSEMBLY | 45100 | - | - | - |
| 3 | LOWER STEERING COLUMN COVER SUB-ASSEMBLY | 45024 | See step 3 | - | - |
| 4 | UPPER STEERING COLUMN COVER | 45286B | - | - | - |
| 5 | WINDSHIELD WIPER SWITCH ASSEMBLY | 84650 | See step 5 | - | - |
| 6 | TURN SIGNAL SWITCH | 84329 | See step 16 | - | - |
| 7 | FRONT CONSOLE BOX | - | - | - | - |
| 8 | DOOR SCUFF PLATE ASSEMBLY LH | 67920 | - | - | - |
| 9 | DOOR SCUFF PLATE ASSEMBLY RH | 67910 | - | - | - |
| 10 | COWL SIDE TRIM BOARD LH | 62112 | - | - | - |
| 11 | COWL SIDE TRIM BOARD RH | 62111C | - | - | - |
| 12 | INSTRUMENT SIDE PANEL LH | 55318C | See step 12 | - | - |
| 13 | INSTRUMENT SIDE PANEL RH | 55317A | See step 12 | - | - |
| 14 | LOWER INSTRUMENT PANEL FINISH PANEL | 55432B | - | - | - |
| 15 | LOWER INSTRUMENT PANEL | 55312 | - | - | - |
| 16 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | 55606 | See step 16 | - | - |
| 17 | NO. 2 INSTRUMENT PANEL UNDER COVER | - | - | - | - |
| 18 | LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY | 73900 | See step 18 | - | - |
| 19 | FUEL LID LOCK OPEN LEVER SUB-ASSEMBLY | 77306 | - | - | - |
| 20 | HOOD LOCK CONTROL LEVER SUB-ASSEMBLY | 53601 | - | - | - |
| 21 | LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY | 73990 | See step 21 | - | - |

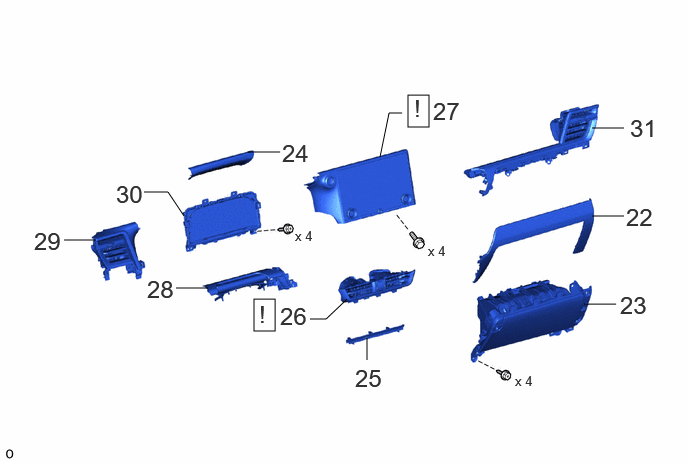

| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 22 | LOWER INSTRUMENT PANEL SUB-ASSEMBLY | 55303B | - | - | - |
| 23 | LOWER NO. 2 INSTRUMENT PANEL ASSEMBLY | 55320 | - | - | - |
| 24 | INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY | 55410C | - | - | - |
| 25 | CENTER INSTRUMENT CLUSTER FINISH PANEL | 55412D | - | - | - |
| 26 | NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY | 55670 | See step 26 | - | - |
| 27 | RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET | - | See step 27 | - | - |
| 28 | INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY | 55404D | - | - | - |
| 29 | NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY | 55650 | - | - | - |
| 30 | COMBINATION METER ASSEMBLY | 83100 | - | - | - |
| 31 | NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY | 55660 | - | - | - |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 32 | ASSIST GRIP PLUG | 74617A | - | - | - |
| 33 | PILLAR ASSIST GRIP ASSEMBLY | 74680 | - | - | - |
| 34 | FRONT PILLAR GARNISH ASSEMBLY LH | 62212B | See step 34 | - | - |
| 35 | FRONT PILLAR GARNISH ASSEMBLY RH | 62211U | See step 34 | - | - |
| 36 | NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY | 55408F | - | - | - |
| 37 | NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY | 55409F | - | - | - |
| 38 | NO. 1 SPEAKER OPENING COVER ASSEMBLY | 55510F | See step 38 | - | - |
| 39 | FRONT NO. 4 SPEAKER ASSEMBLY | 86160L | See step 39 | - | - |
| 40 | FRONT NO. 5 SPEAKER ASSEMBLY | 86161G | See step 40 | - | - |
| 41 | INSTRUMENT CLUSTER FINISH PANEL END | 55414A | See step 41 | - | - |
| 42 | INSTRUMENT PANEL SAFETY PAD ASSEMBLY | - | See step 42 | - | - |
| *A | w/ Headup Display | *B | for Side |
| *C | for Center | - | - |
| • | Non-reusable part | - | - |
