Caution / Notice / Hint

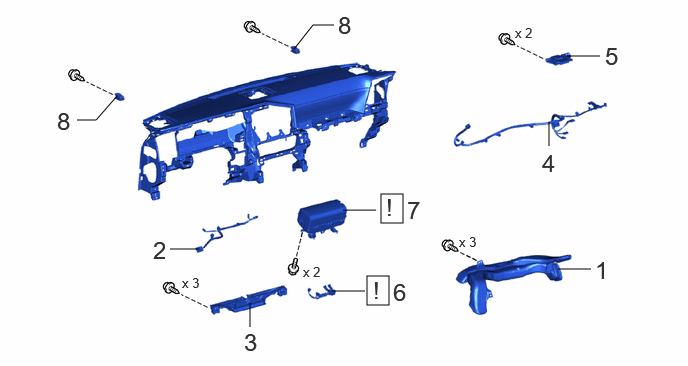

COMPONENTS (DISASSEMBLY)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | NO. 3 HEATER TO REGISTER DUCT SUB-ASSEMBLY | 55086 | - | - | - |
| 2 | NO. 2 INSTRUMENT PANEL WIRE | 82142A | - | - | - |
| 3 | DEFROSTER NOZZLE ASSEMBLY | 55950G | - | - | - |
| 4 | ANTENNA CORD SUB-ASSEMBLY | 86101 | - | - | - |
| 5 | NAVIGATION ANTENNA ASSEMBLY WITH BRACKET | - | - | - | - |
| 6 | NO. 2 INSTRUMENT PANEL WIRE | 82142A | See step 6 | - | - |
| 7 | INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY | 73960A | See step 7 | - | - |
| 8 | NO. 1 INSTRUMENT PANEL PIN | 55328 | - | - | - |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 9 | GLOVE COMPARTMENT DOOR LOCK ASSEMBLY | 55560A | - | - | - |
| 10 | GLOVE COMPARTMENT DOOR LOCK COVER | 55569 | - | - | - |
| 11 | GLOVE COMPARTMENT LOCK CYLINDER | 69056A | See step 11 | - | - |
| 12 | GLOVE COMPARTMENT DOOR STOPPER SUB-ASSEMBLY | 55054 | - | - | - |
| 13 | SWITCH BACE HOLE COVER | 55524 | - | - | - |
| 14 | NO. 2 COMBINATION SWITCH ASSEMBLY | 84970E | - | - | - |
| *A | w/o Panoramic View Monitor System | *B | w/ Panoramic View Monitor System |
