COMPONENTS (REASSEMBLY)

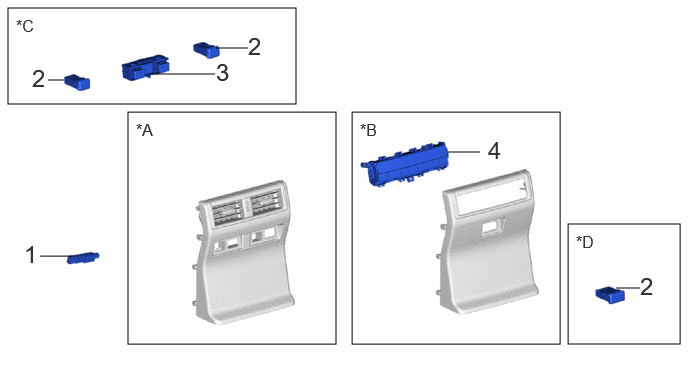

Fig 1: Front Console Box (W/O Cool Box) Reassembly Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
1	NO. 2 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY	899A0A	-	-	-
2	NO. 2 USB CHARGER SOCKET	85532C	-	-	-
3	REFRESHING SEAT SWITCH	84752	-	-	-
4	INTEGRATION CONTROL AND PANEL ASSEMBLY	84010A	-	-	-

*A	w/o Rear Air Conditioning System	*B	w/ Rear Air Conditioning System
*C	w/ Rear Seat Heater Switch	*D	w/o Rear Seat Heater Switch

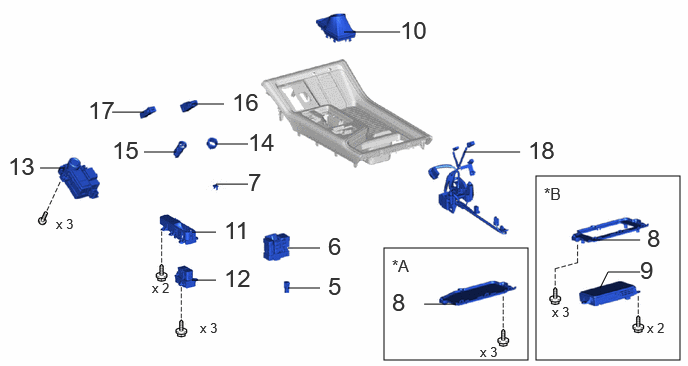

Fig 2: Front Console Box (W/O Cool Box) Reassembly Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
5	CONSOLE BOX ILLUMINATION LIGHT ASSEMBLY	81080K	-	-	-
6	TRANSFER POSITION SWITCH	84223A	-	-	-
7	SHIFT LOCK RELEASE BUTTON COVER	33554C	-	-	-
8	CONSOLE BOX POCKET	58825A	-	-	-
9	MOBILE WIRELESS CHARGER CRADLE ASSEMBLY	861C0	-	-	-
10	SHIFTING HOLE COVER SUB-ASSEMBLY	58808	-	-	-
11	SHIFT POSITION INDICATOR	35978	-	-	-
12	ELECTRIC PARKING BRAKE SWITCH ASSEMBLY	84390B	-	-	-
13	NO. 4 COMBINATION SWITCH ASSEMBLY	84970G	-	-	-
14	CIGARETTE LIGHTER INDICATOR LENS	85533	-	-	-
15	NO. 1 POWER OUTLET SOCKET ASSEMBLY	85530	-	-	-
16	STEREO JACK ADAPTER ASSEMBLY	86190E	-	-	-
17	USB CHARGER SOCKET	85532	-	-	-
18	CONSOLE BOX WIRE	82166	-	-

w/o Wireless Charger

w/ Wireless Charger

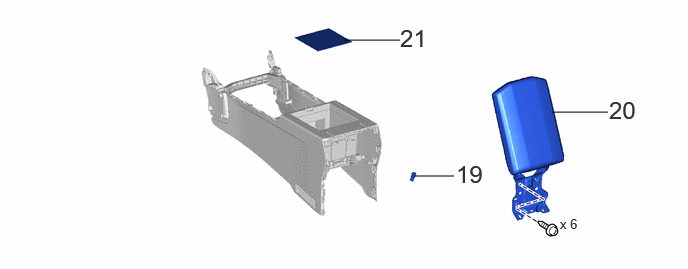

Fig 3: Front Console Box (W/O Cool Box) Reassembly Components (3 Of 3)

Procedure		Part Name Code
19	NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY	81080M	-	-	-
20	ARMREST ASSEMBLY	-	-	-	-
21	CONSOLE BOX CARPET	58815A	-	-	-
