COMPONENTS (REMOVAL)

Fig 1: Front Console Box (W/ Cool Box) Removal Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
1	UPPER RADIATOR SUPPORT SEAL	53292A	-	-	-
2	RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM	-	See step 2	-	-

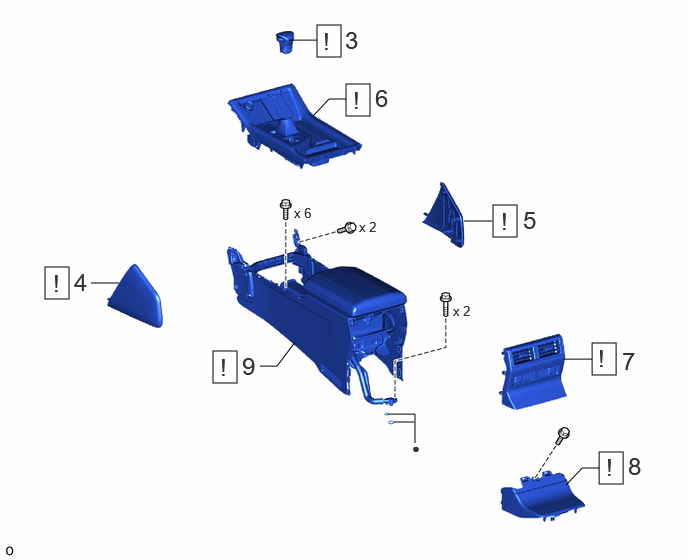

Fig 2: Front Console Box (W/ Cool Box) Removal Components (2 Of 2)

Procedure		Part Name Code
3	SHIFT LEVER KNOB SUB-ASSEMBLY	33504F	See step 3	-	-
4	NO. 2 INSTRUMENT PANEL FINISH PANEL CUSHION	55449F	See step 4	-	-
5	NO. 1 INSTRUMENT PANEL FINISH PANEL CUSHION	55448D	See step 4	-	-
6	UPPER CONSOLE PANEL ASSEMBLY	-	See step 6	-	-
7	REAR CONSOLE END PANEL SUB-ASSEMBLY	58903A	See step 7	-	-
8	REAR NO. 2 CONSOLE END PANEL SUB-ASSEMBLY	58904C	See step 8	-	-
9	COOLING BOX ASSEMBLY	88520	See step 9	-	-

•

Non-reusable part
