COMPONENTS (REASSEMBLY)

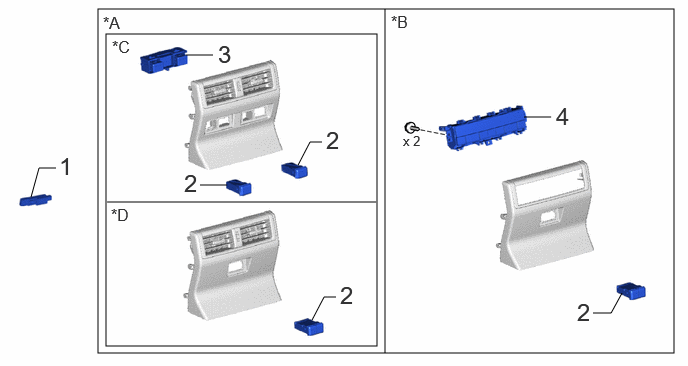

| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | NO. 2 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY | 899A0A | - | - | - |
| 2 | NO. 2 USB CHARGER SOCKET | 85532C | - | - | - |
| 3 | REFRESHING SEAT SWITCH | 84752 | - | - | - |
| 4 | INTEGRATION CONTROL AND PANEL ASSEMBLY | 84010A | - | - | - |
| *A | w/ Rear Register Duct | *B | w/o Rear Register Duct |
| *C | w/ Rear Seat Heater Switch | *D | w/o Rear Seat Heater Switch |

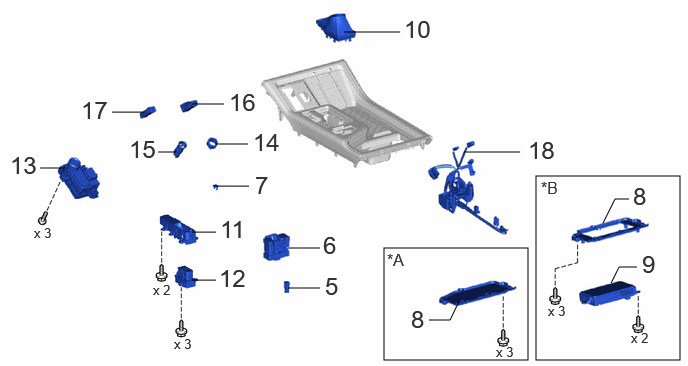

| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 5 | CONSOLE BOX ILLUMINATION LIGHT ASSEMBLY | 81080K | - | - | - |
| 6 | TRANSFER POSITION SWITCH | 84223A | - | - | - |
| 7 | SHIFT LOCK RELEASE BUTTON COVER | 33554C | - | - | - |
| 8 | CONSOLE BOX POCKET | 58825A | - | - | - |
| 9 | MOBILE WIRELESS CHARGER CRADLE ASSEMBLY | 861C0 | - | - | - |
| 10 | SHIFTING HOLE COVER SUB-ASSEMBLY | 58808 | - | - | - |
| 11 | SHIFT POSITION INDICATOR | 35978 | - | - | - |
| 12 | ELECTRIC PARKING BRAKE SWITCH ASSEMBLY | 84390B | - | - | - |
| 13 | NO. 4 COMBINATION SWITCH ASSEMBLY | 84970G | - | - | - |
| 14 | CIGARETTE LIGHTER INDICATOR LENS | 85533 | - | - | - |
| 15 | NO. 1 POWER OUTLET SOCKET ASSEMBLY | 85530 | - | - | - |
| 16 | STEREO JACK ADAPTER ASSEMBLY | 86190E | - | - | - |
| 17 | USB CHARGER SOCKET | 85532 | - | - | - |
| 18 | CONSOLE BOX WIRE | 82166 | - | - | |
| *A | w/o Wireless Charger | *B | w/ Wireless Charger |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 19 | COOLER (COOL BOX) EVAPORATOR SUB-ASSEMBLY | 88501E | See step 19 | - | - |
| 20 | COOL BOX BLOWER MOTOR WITH FAN SUB-ASSEMBLY | 87103F | - | - | - |
| 21 | COOLER MAGNET VALVE ASSEMBLY | 88690 | See step 21 | - | - |
| 22 | COOLER REFRIGERANT LIQUID PIPE A | 88716A | See step 22 | - | - |
| 23 | LIQUID HOSE A | 88721A | See step 23 | - | - |
| 24 | NO. 1 COOLER REFRIGERANT DISCHARGE HOSE | 88711 | See step 24 | - | - |
| *1 | BRACKET | *2 | COOLING UNIT CASE SUB-ASSEMBLY |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| Compressor oil ND-OIL 12 or equivalent | - | - |

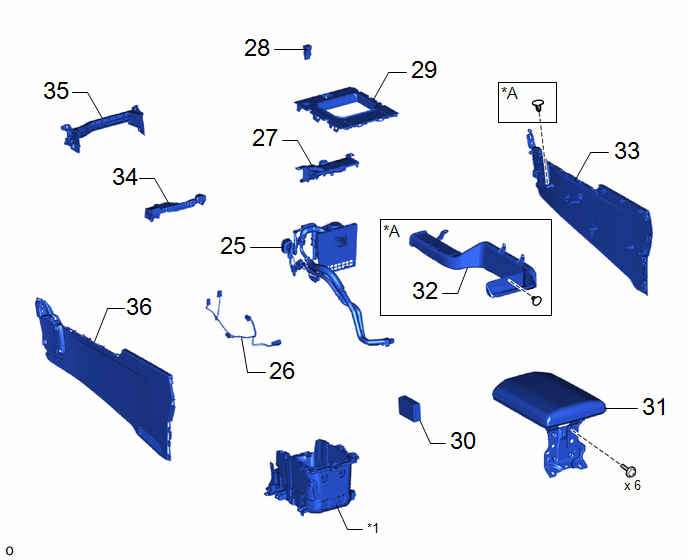

| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 25 | NO. 2 COOLING BOX ASSEMBLY | 88530A | - | - | - |
| 26 | AIR CONDITIONER HARNESS | - | - | - | - |
| 27 | FRONT CONSOLE BOX COVER | - | - | - | - |
| 28 | BLOWER CONTROL SWITCH ASSEMBLY | - | - | - | - |
| 29 | UPPER CONSOLE BOX | - | - | - | - |
| 30 | AIR PURIFIER AMPLIFIER ASSEMBLY | 88950 | - | - | - |
| 31 | COOL BOX CONSOLE COMPARTMENT DOOR SUB-ASSEMBLY | - | - | - | - |
| 32 | NO. 2 CONSOLE BOX DUCT | - | - | - | - |
| 33 | NO. 1 COOL BOX PANEL | - | - | - | - |
| 34 | NO. 2 COOL BOX RETAINER | - | - | - | - |
| 35 | NO. 1 COOL BOX RETAINER | - | - | - | - |
| 36 | NO. 2 COOL BOX PANEL | - | - | - | - |
| *A | w/ Rear Register Duct | - | - |
| *1 | CONSOLE BOX | - | - |
