COMPONENTS (DISASSEMBLY)

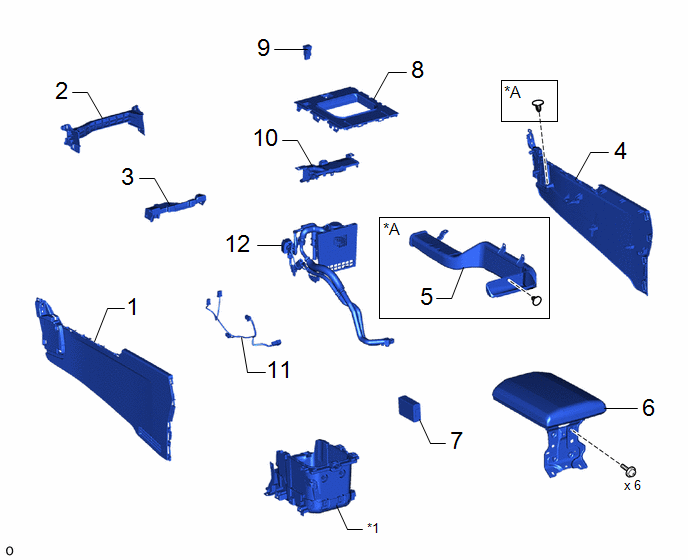

Fig 1: Front Console Box (W/ Cool Box) Disassembly Components (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
1	NO. 2 COOL BOX PANEL	-	-	-	-
2	NO. 1 COOL BOX RETAINER	-	-	-	-
3	NO. 2 COOL BOX RETAINER	-	-	-	-
4	NO. 1 COOL BOX PANEL	-	-	-	-
5	NO. 2 CONSOLE BOX DUCT	-	-	-	-
6	COOL BOX CONSOLE COMPARTMENT DOOR SUB-ASSEMBLY	-	-	-	-
7	AIR PURIFIER AMPLIFIER ASSEMBLY	88950	-	-	-
8	UPPER CONSOLE BOX	-	-	-	-
9	BLOWER CONTROL SWITCH ASSEMBLY	-	-	-	-
10	FRONT CONSOLE BOX COVER	-	-	-	-
11	AIR CONDITIONER HARNESS	-	-	-	-
12	NO. 2 COOLING BOX ASSEMBLY	88530A	-	-	-

*A	w/ Rear Register Duct	-	-
*1	CONSOLE BOX	-	-

Fig 2: Front Console Box (W/ Cool Box) Disassembly Components (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
13	NO. 1 COOLER REFRIGERANT DISCHARGE HOSE	88711	See step 13	-	-
14	LIQUID HOSE A	88721A	See step 14	-	-
15	COOLER REFRIGERANT LIQUID PIPE A	88716A	See step 15
16	COOLER MAGNET VALVE ASSEMBLY	88690	See step 16	-	-
17	COOL BOX BLOWER MOTOR WITH FAN SUB-ASSEMBLY	87103F	-	-	-
18	COOLER (COOL BOX) EVAPORATOR SUB-ASSEMBLY	88501E	See step 18	-	-

*1	BRACKET	*2	COOLING UNIT CASE SUB-ASSEMBLY
•	Non-reusable part	-	-

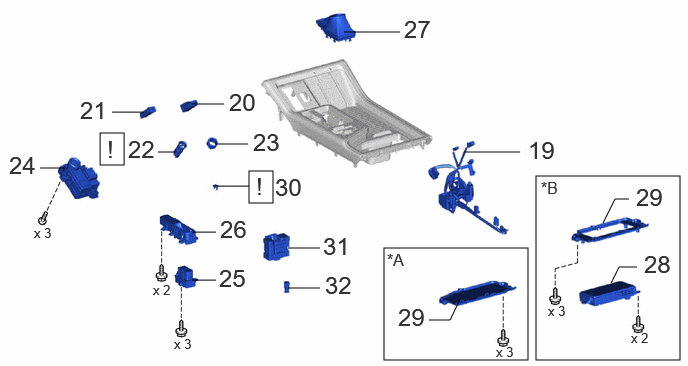

Fig 3: Front Console Box (W/ Cool Box) Disassembly Components (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
19	CONSOLE BOX WIRE	82166	-	-	-
20	USB CHARGER SOCKET	85532	-	-	-
21	STEREO JACK ADAPTER ASSEMBLY	86190E	-	-	-
22	NO. 1 POWER OUTLET SOCKET ASSEMBLY	85530	See step 22	-	-
23	CIGARETTE LIGHTER INDICATOR LENS	85533	-	-	-
24	NO. 4 COMBINATION SWITCH ASSEMBLY	84970G	-	-	-
25	ELECTRIC PARKING BRAKE SWITCH ASSEMBLY	84390B	-	-	-
26	SHIFT POSITION INDICATOR	35978	-	-	-
27	SHIFTING HOLE COVER SUB-ASSEMBLY	58808	-	-	-
28	MOBILE WIRELESS CHARGER CRADLE ASSEMBLY	861C0	-	-	-
29	CONSOLE BOX POCKET	58825A	-	-	-
30	SHIFT LOCK RELEASE BUTTON COVER	33554C	See step 30	-	-
31	TRANSFER POSITION SWITCH	84223A	-	-	-
32	CONSOLE BOX ILLUMINATION LIGHT ASSEMBLY	81080K	-	-

w/o Wireless Charger

w/ Wireless Charger

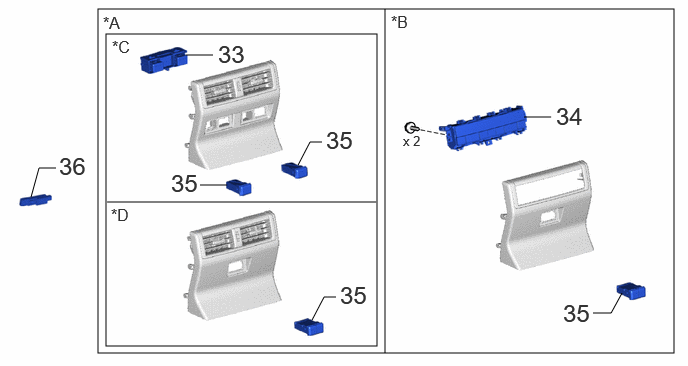

Fig 4: Front Console Box (W/ Cool Box) Disassembly Components (4 Of 4)

Procedure		Part Name Code
33	REFRESHING SEAT SWITCH	84752	-	-	-
34	INTEGRATION CONTROL AND PANEL ASSEMBLY	84010A	-	-	-
35	NO. 2 USB CHARGER SOCKET	85532C	-	-	-
36	NO. 2 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY	899A0A	-	-	-

*A	w/ Rear Register Duct	*B	w/o Rear Register Duct
*C	w/ Rear Seat Heater Switch	*D	w/o Rear Seat Heater Switch
