Installation [06/2018 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL REAR ENGINE OIL SEAL
    1. Using height adjustment attachments and plate lift attachments, place the engine assembly on a flat level surface.
      NOTE:
      • Using height adjustment attachments and plate lift attachments, keep the engine assembly level.
      • To prevent the No. 2 oil pan sub-assembly from deforming, do not place any attachments under the No. 2 oil pan sub-assembly of the engine assembly.
      • Using an engine sling device and engine lift, secure the engine assembly before servicing.
    2. Apply MP grease to the lip of a new rear engine oil seal.
      NOTE:
      • Keep the lip free from foreign matter.
      • Do not allow MP grease to contact the dust seal.
    3. Using SST and a hammer, tap in the rear engine oil seal.
      GTY751431Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a -0.9 to 1.1 mm
      • SST: 09223-15030
      • SST: 09950-70010
        1. 09951-07150

      Standard Depth

      -0.9 to 1.1 mm (-0.0354 to 0.0433 in.) (From the edge of the cylinder block sub-assembly and stiffening crankcase assembly)

      NOTE:

      Do not tap in the rear engine oil seal at an angle.

  2. INSTALL NO. 1 CRANKSHAFT POSITION SENSOR PLATE
    1. Type A:
      1. Install the No. 1 crankshaft position sensor plate.
        GTY756894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        HINT:

        Align the pin hole of the No. 1 crankshaft position sensor plate with the pin of the crankshaft.

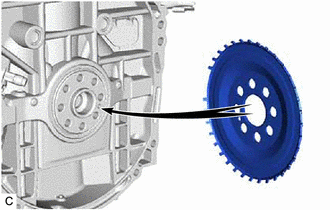

    2. Type B:
      1. Install the No. 1 crankshaft position sensor plate.

        HINT:

        Align the pin hole of the No. 1 crankshaft position sensor plate with the pin of the crankshaft.

        GTY947967Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL FLYWHEEL SUB-ASSEMBLY
    1. Using SST, hold the crankshaft pulley assembly.
      • SST: 09213-54015
      • SST: 09330-00021
      GTY771939Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Clean the bolts and bolt holes.
    3. Apply adhesive to 2 or 3 threads at the end of each of 8 new bolts.

      Adhesive

      Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

    4. Install the flywheel sub-assembly with the 8 bolts. Uniformly tighten the 8 bolts in the sequence shown in the illustration.
      Fig 1: Flywheel Sub-Assembly Bolts Tightening Sequence
      GTY772605Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 150 N.m (1530 kgf/cm, 111 ft.lbf)

      NOTE:

      Do not start the engine for at least 1 hour after installing the flywheel sub-assembly.

  4. INSTALL TRANSMISSION INPUT DAMPER ASSEMBLY
    1. Using SST, hold the crankshaft pulley assembly.
      • SST: 09213-54015
      • SST: 09330-00021
      GTY756013Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the transmission input damper assembly to the flywheel sub-assembly with 6 new bolts. Uniformly tighten the 6 bolts in the order shown in the illustration.
      Fig 2: Transmission Input Damper Assembly Bolts Tightening Sequence
      GTY757640Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 30 N.m (306 kgf/cm, 22 ft.lbf)

      NOTE:
      • Make sure that there are no oil on the transmission input damper assembly and flywheel sub-assembly.
      • Make sure to install the transmission input damper assembly in the correct direction.
      • Do not allow grease to contact the splines of the transmission input damper assembly and the input shaft.
  5. INSTALL HYBRID VEHICLE TRANSAXLE ASSEMBLY

    Refer to INSTALLATION [06/2018 - 08/2020] , or refer to INSTALLATION [08/2020 - 08/2021] , or refer to INSTALLATION [08/2021 - ]
