System Diagram [08/2021 - 09/2022]

HINT:

Refer to System Diagram of CAN Communication System.

Refer to SYSTEM DIAGRAM [08/2020 - 09/2022]

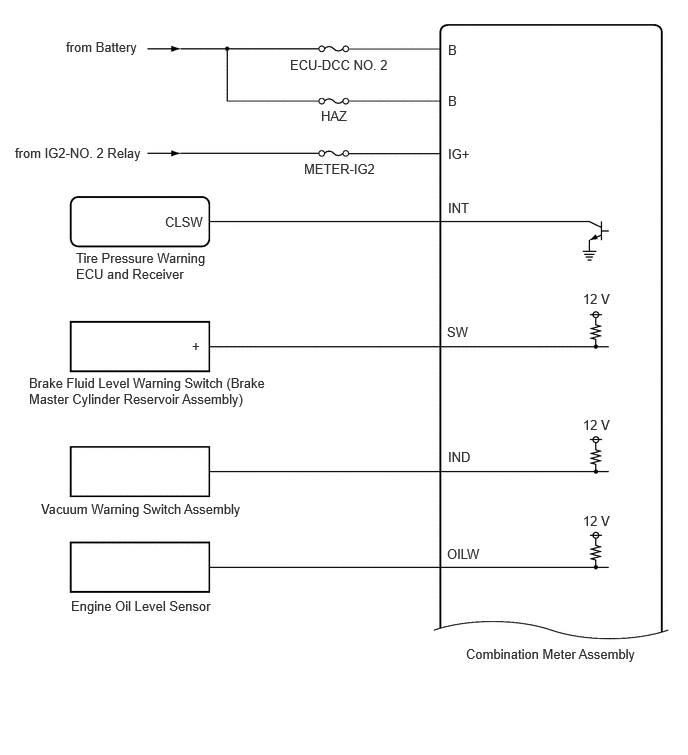

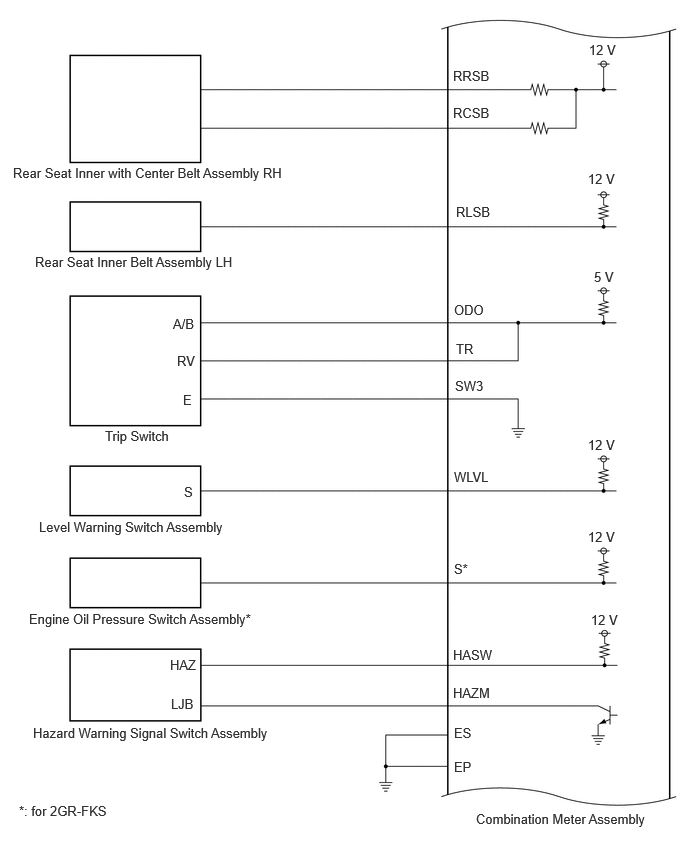

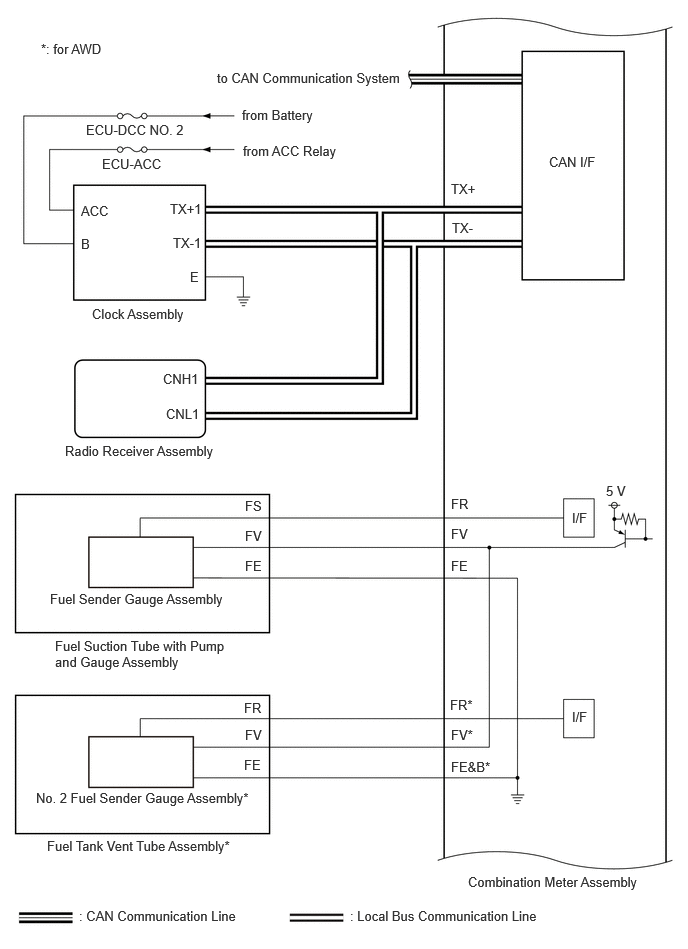

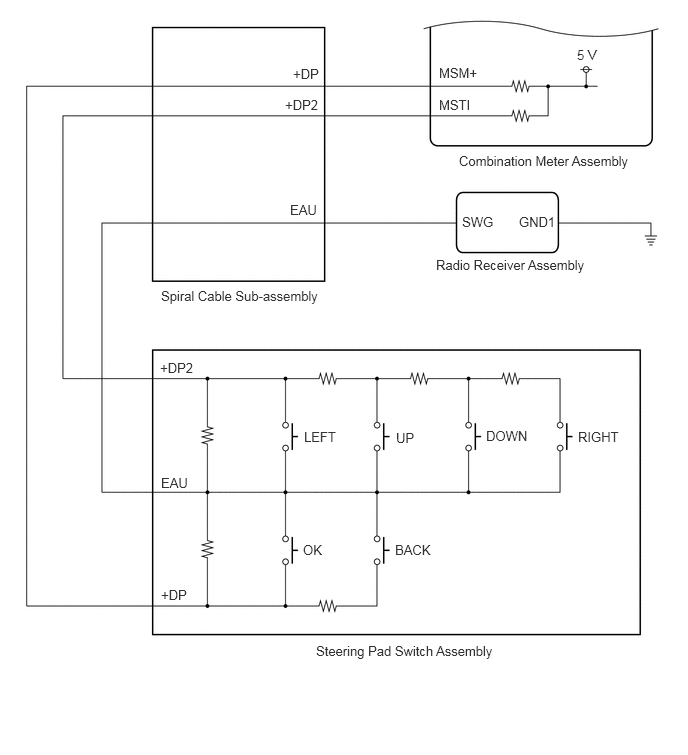

1. COMBINATION METER ASSEMBLY DIAGRAM

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. TURN SIGNAL LIGHT DIAGRAM

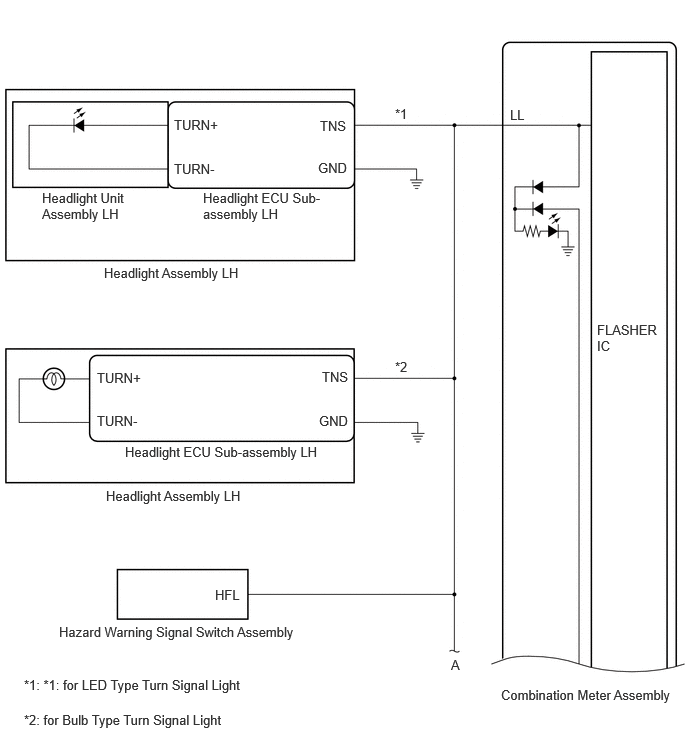

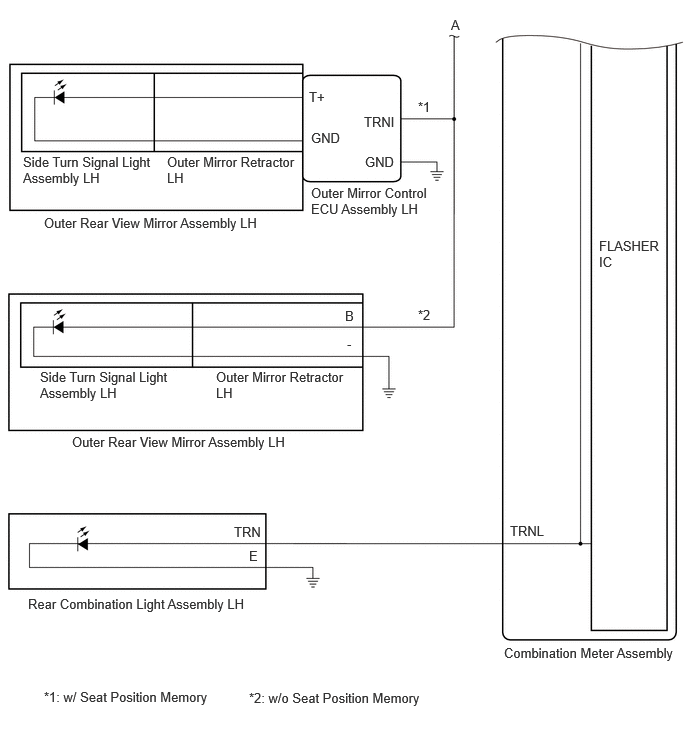

   for LH Side

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

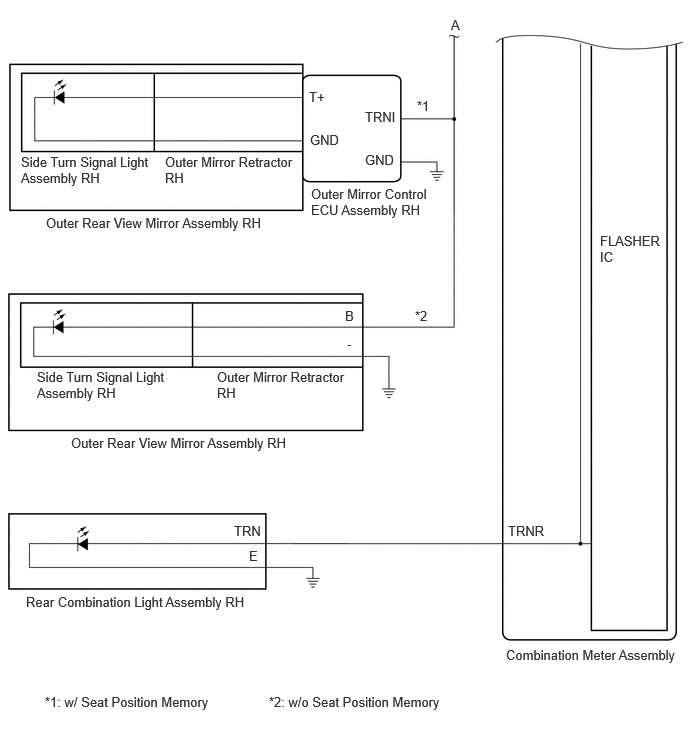

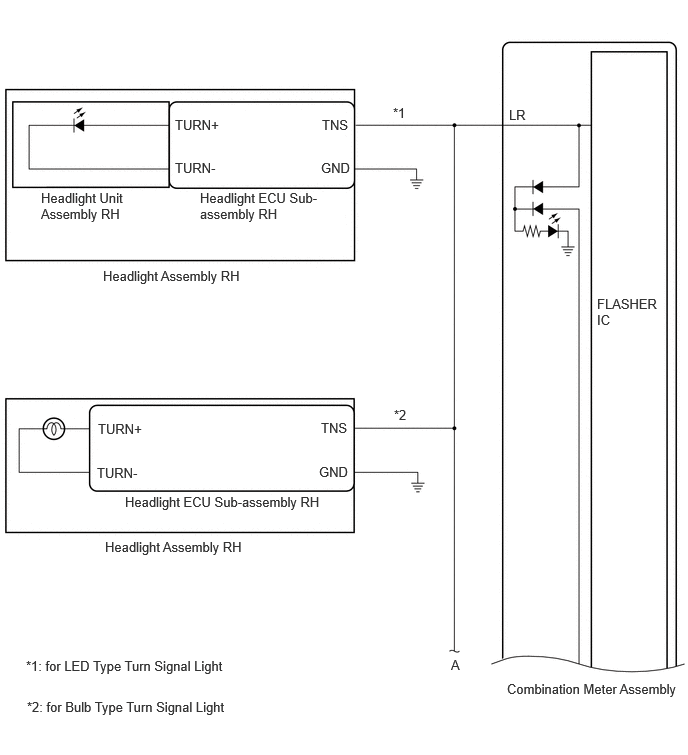

   for RH Side

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

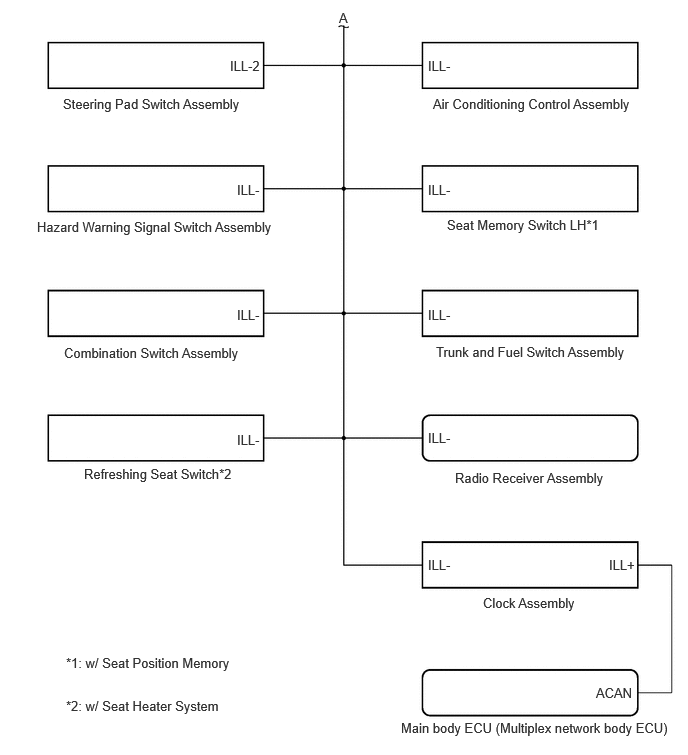

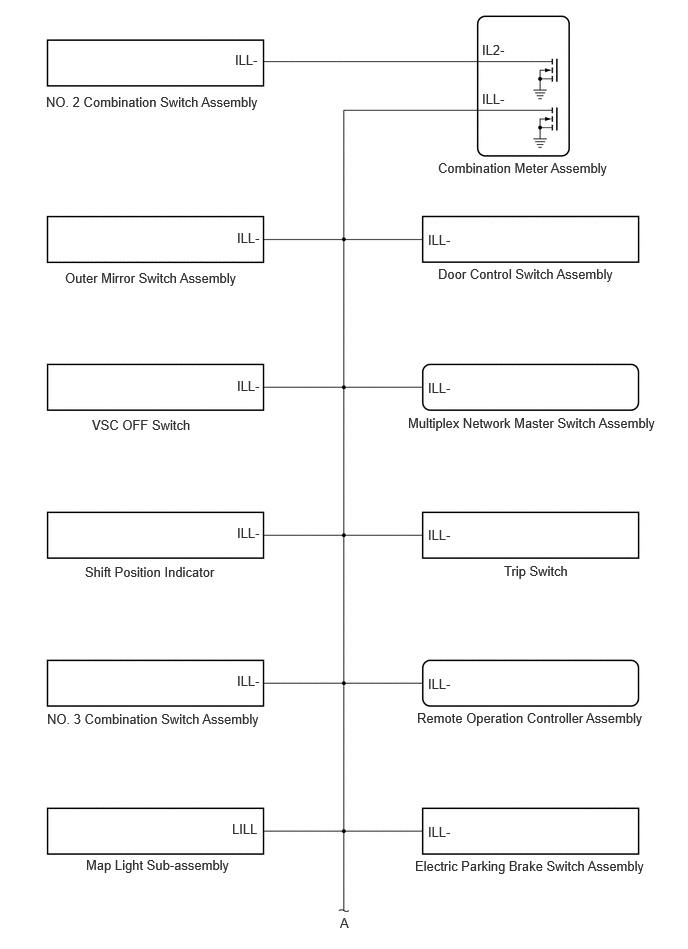

3. ILLUMINATION DIAGRAM

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

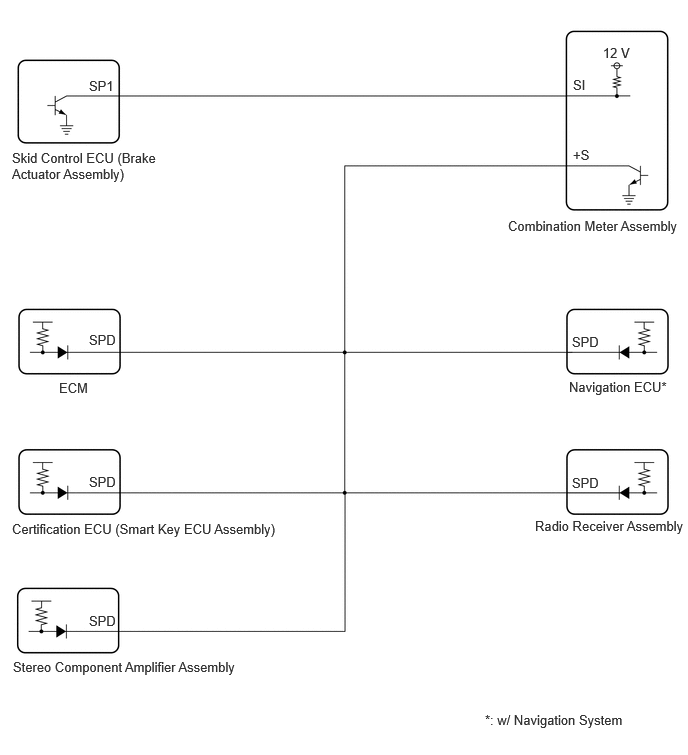

4. SPEED SIGNAL DIAGRAM

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
