Removal [08/2023 - ]: Procedure

Refer to REMOVAL [10/2022 - ]

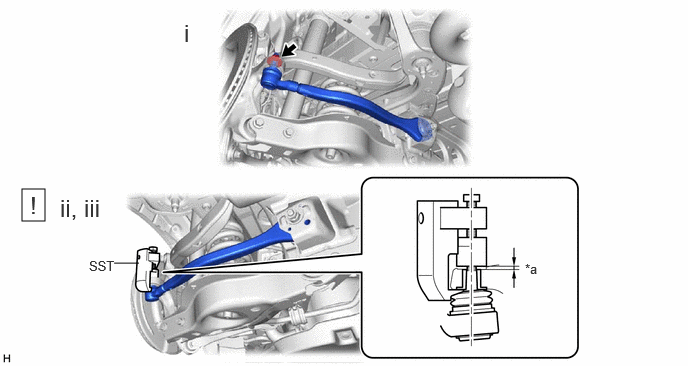

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   2 mm (0.0787 in.)

   -

   -

   1. Remove the nut.
   2. Install SST (attachment) onto the toe control link sub-assembly so that there is a space of approximately 2 mm (0.0787 in.) between the arm and attachment.
      • SST: 09628-50010
        1. 09628-05010
      NOTE:

      • Be sure to install SST because the rear axle carrier sub-assembly spacer may shift.
      • As SST may become damaged, make sure the space between the arm and spacers is not 2 mm (0.0787 in.) or less.
   3. Using SST, disconnect the toe control link sub-assembly from the rear axle carrier sub-assembly.
      • SST: 09628-50010
        1. 09628-05010
      NOTE:

      • Apply molybdenum grease to threads and end of the SST bolt.
      • Do not damage the dust cover.
      • As the dust cover may be damaged, adjust SST with the center nut so that the body and claw are parallel.
      • Do not apply a torque of 160 N.m (1631 kgf/cm, 118 ft.lbf) or more to SST as it may be damaged.

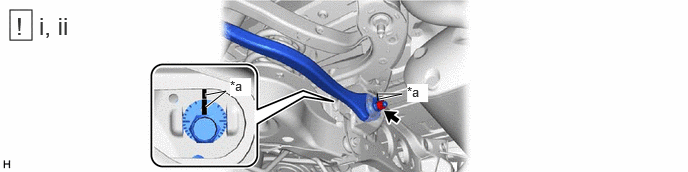

2. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Matchmark

   -

   -

   1. Place matchmarks on the rear suspension toe adjust cam sub-assembly, rear No. 2 toe adjust plate and rear suspension member sub-assembly.
   2. Remove the nut, rear suspension toe adjust cam sub-assembly and rear No. 2 suspension toe adjust plate and toe control link sub-assembly.
