On-Vehicle Inspection [10/2022 - ]: Procedure

  1. INSPECT TOE CONTROL LINK SUB-ASSEMBLY
    1. Check for looseness.
      1. Lift up the vehicle.

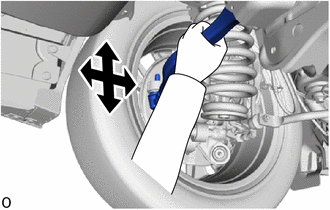

      2. GTY1122316Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Move the toe control link sub-assembly up and down by hand, and then left and right by hand, to check for any looseness in the toe control link sub-assembly.
