Installation [10/2022 - ]: Procedure
- TEMPORARILY INSTALL TOE CONTROL LINK SUB-ASSEMBLY

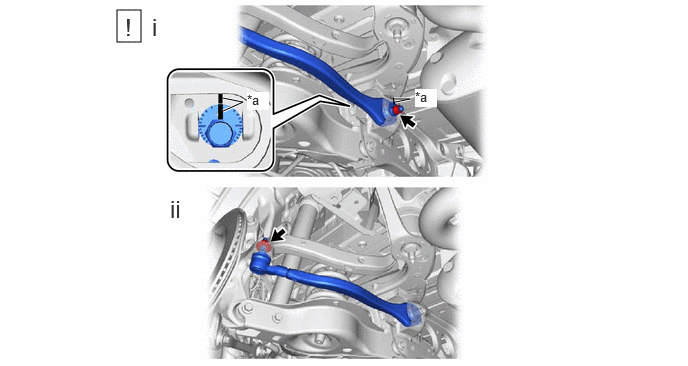

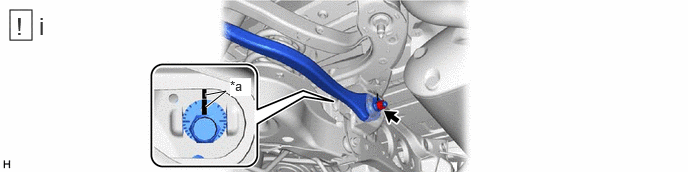

*a Matchmark - - - temporarily install rear suspension toe adjust cam sub-assembly, rear No. 2 toe adjust plate and toe control link sub-assembly with the nut.NOTE:
- Align the matchmarks on the rear suspension toe adjust cam sub-assembly, rear No. 2 toe adjust plate and rear suspension member sub-assembly.
- Insert the rear suspension toe adjust cam sub-assembly from the front of the vehicle..
- install the toe control link sub-assembly with a new nut.
Torque: 152 N.m (1550 kgf/cm, 112 ft.lbf)
- temporarily install rear suspension toe adjust cam sub-assembly, rear No. 2 toe adjust plate and toe control link sub-assembly with the nut.
- STABILIZE SUSPENSION
See step 5 [10/2022 - 10/2024], or see step 5 [10/2024 - ] - INSTALL TOE CONTROL LINK SUB-ASSEMBLY
- INSTALL REAR WHEEL
Refer to INSTALLATION [10/2022 - ]
- INSPECT AND ADJUST REAR WHEEL ALIGNMENT
Refer to ADJUSTMENT [10/2022 - 08/2023] , or refer to ADJUSTMENT [08/2023 - ]
- PERFORM INITIALIZATION
Parking Assist Monitor System Refer to CALIBRATION [10/2022 - ] Panoramic View Monitor System Refer to CALIBRATION [10/2022 - ] Advanced Park Refer to CALIBRATION [10/2022 - ] Lighting System (w/ Automatic Headlight Beam Level Control System) Refer to INITIALIZATION [10/2022 - ]
