Caution / Notice / Hint

HINT:

• Use the same procedure for the RH and LH sides.
• The following procedure is for the LH side.

COMPONENTS (INSTALLATION)

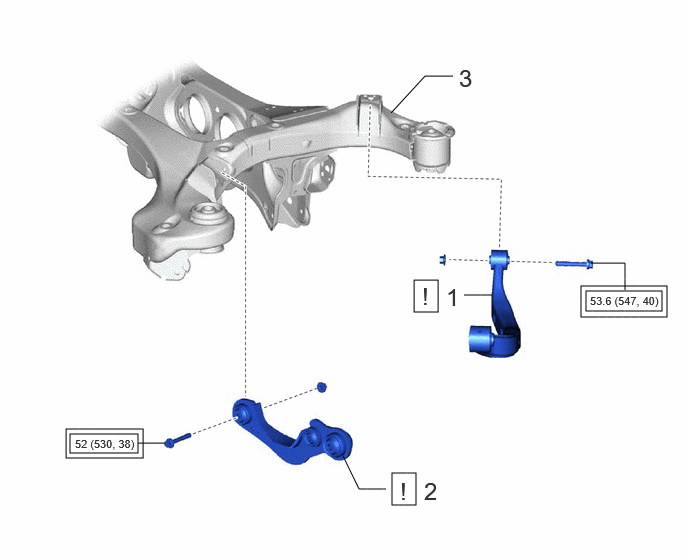

Fig 1: Rear Upper Arm Installation Components With Torque Specifications [08/2023 - 10/2024]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code
1	REAR UPPER NO. 2 CONTROL ARM ASSEMBLY	48790F	See step  1	-	-
2	REAR UPPER CONTROL ARM ASSEMBLY	48790	See step  2	-	-
3	REAR SUSPENSION MEMBER SUB-ASSEMBLY	51206A	-	-	-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)

-

-
