HINT:

• Use the same procedure for the RH side and LH side.
• The following procedure is for the LH side.

COMPONENTS (INSTALLATION)

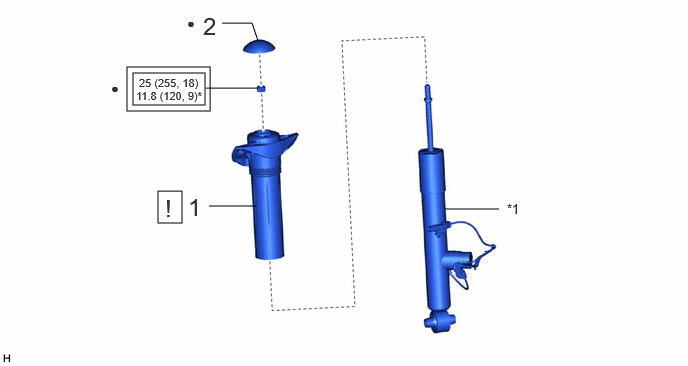

Fig 1: Rear Shock Absorber Installation Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code
1	REAR SUSPENSION SUPPORT ASSEMBLY	48760B	See step  1	-	-
2	REAR SHOCK ABSORBER CAP	48554A	-	-	-

*1	REAR SHOCK ABSORBER ASSEMBLY	*	For use with SST
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	•	Non-reusable part

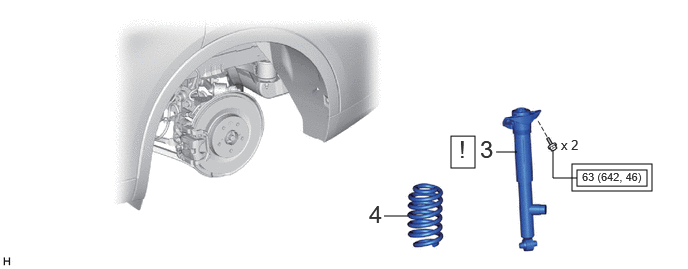

Fig 2: Rear Shock Absorber Installation Components With Torque Specifications (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code
3	REAR SHOCK ABSORBER ASSEMBLY	48540	See step  3	-	-
4	REAR COIL SPRING	48231B	-	-	-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)

-

-
