Caution / Notice / Hint
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.

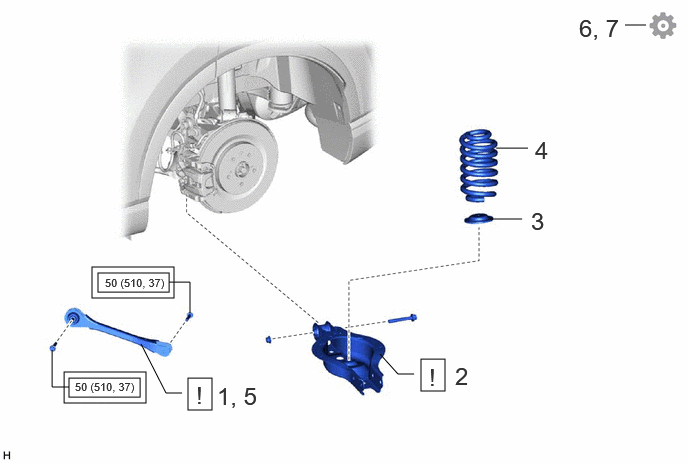

COMPONENTS (INSTALLATION)
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | TEMPORARILY INSTALL REAR NO. 1 SUSPENSION ARM ASSEMBLY | 48720A | See step 1 | - | - |
| 2 | REAR NO. 2 SUSPENSION ARM ASSEMBLY | 48740F | See step 2 | - | - |
| 3 | REAR LOWER COIL SPRING INSULATOR | 48258C | - | - | - |
| 4 | REAR COIL SPRING | 48231B | - | - | - |
| 5 | INSTALL REAR NO. 1 SUSPENSION ARM ASSEMBLY | 48720A | - | - | - |
| 6 | INSPECT AND ADJUST REAR WHEEL ALIGNMENT | - | - | - | See step 6 |
| 7 | PERFORM INITIALIZATION | - | - | - | See step 7 |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |
