Caution / Notice / Hint
COMPONENTS (INSTALLATION)

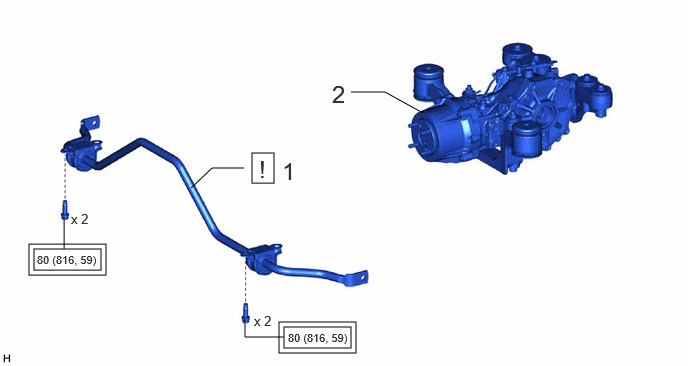

Fig 1: Rear Stabilizer Bar (For Gasoline Model AWD) Installation Components With Torque Specifications
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | REAR STABILIZER BAR | 48812 | See step 1 | - | - |
| 2 | REAR DIFFERENTIAL CARRIER ASSEMBLY | 41110 | - | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |
