Removal [10/2022 - ]: Procedure

Refer to REMOVAL [10/2022 - ]

See step  1

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Heating Area

   -

   -

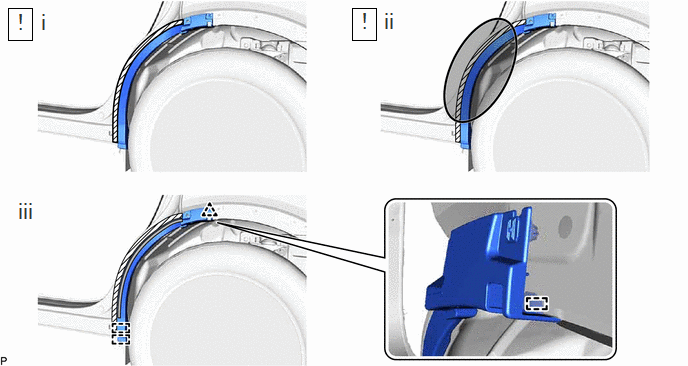

   1. Apply protective tape around the quarter wheel opening moulding as shown in the illustration.
   2. Heat the quarter wheel opening moulding surface.

      1. Using a heat light, heat the double-sided tape remaining on the quarter wheel opening moulding and vehicle body.

      HEATING TEMPERATURE



      Area	Temperature	Area	Temperature
      Quarter Wheel Opening Moulding and Vehicle Body	40 to 60 °C (104 to 140 °F)	-	-

      WARNING:

      • Do not touch the heat light and heated parts, touching the heat light may result in burns.
      • Touching heated parts for a long time may result in burns.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      *a	Heated Part
      *b	Heat Light

      NOTE:

      Do not heat the quarter wheel opening moulding excessively.

   3. Disengage the clip and 3 guides to remove the quarter wheel opening moulding as shown in the illustration.
