Disassembly [10/2022 - ]: Procedure

  1. REMOVE HEADLIGHT ASSEMBLY
    1. for Bulb Type Turn Signal Light: Refer to REMOVAL [10/2022 - ]
    2. for LED Type Turn Signal Light: Refer to REMOVAL [10/2022 - ]
  2. REMOVE FRONT BUMPER SIDE RETAINER

    Refer to PROCEDURE - Step 47 [10/2022 - 08/2023] , or refer to PROCEDURE - Step 47 [08/2023 - ]

  3. REMOVE FENDER PANEL MUDGUARD SUB-ASSEMBLY

    See step  3

  4. REMOVE WINDSHIELD OUTSIDE MOULDING
    See step  1
  5. REMOVE WHEEL ASSEMBLY

    Refer to REMOVAL [10/2022 - ]

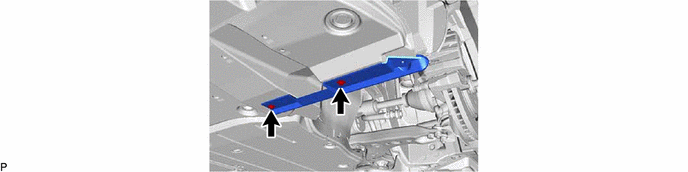

  6. REMOVE FRONT WHEEL OPENING EXTENSION PAD
    1. GTY1126914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

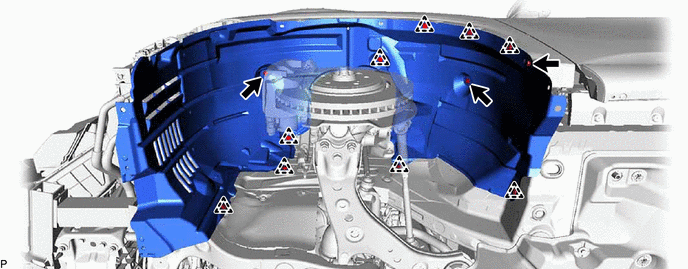

  7. REMOVE FRONT FENDER LINER
    1. GTY1126915Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

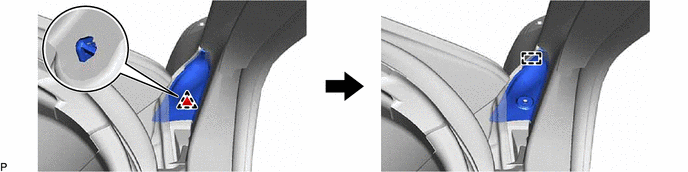

  8. REMOVE FRONT FENDER TO DOOR HINGE UPPER SEAL
    1. GTY1129282Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

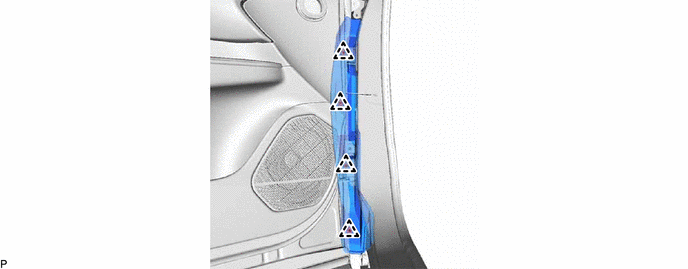

  9. REMOVE FRONT FENDER SEAL
    1. GTY1129289Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE FRONT NO. 2 FENDER NAME PLATE (for Sport Package)
    Refer to PROCEDURE - Step 3 [10/2022 - 08/2023] , or refer to PROCEDURE - Step 3 [08/2023 - ]
  11. REMOVE FRONT FENDER PANEL

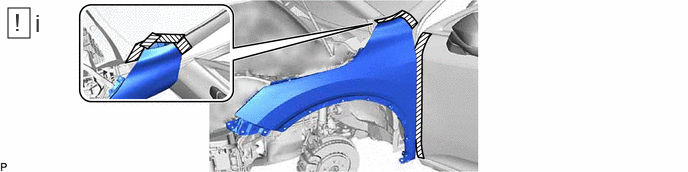

    1. GTY1124965Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Apply protective tape around the front fender panel as shown in the illustration.

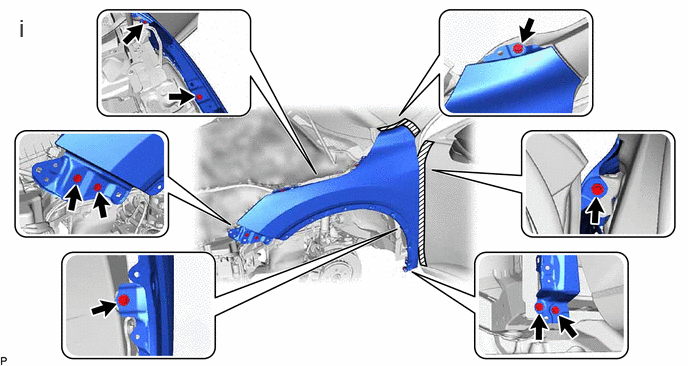

    2. GTY1128674Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 9 bolts and front fender panel.

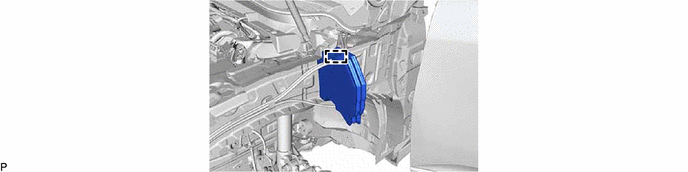

  12. REMOVE RADIATOR GRILLE SIDE AIR GUIDE
    1. GTY1126946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

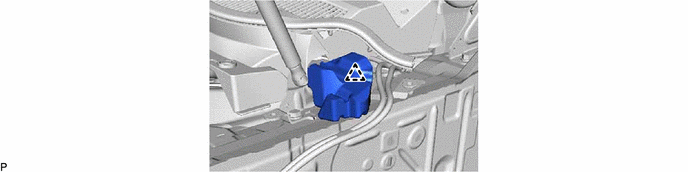

  13. REMOVE AIR SEALED PLATE
    1. GTY1126945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
