Removal [10/2022 - ]: Procedure

  1. REMOVE BACK DOOR UPPER TRIM COVER

    Refer to PROCEDURE - Step 1

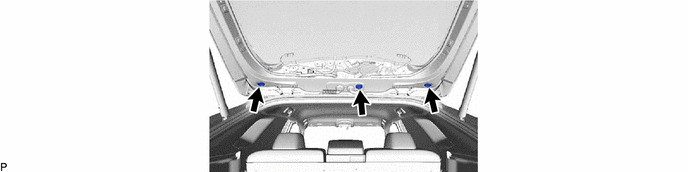

  2. REMOVE HOLE PLUG
    1. GTY1137375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

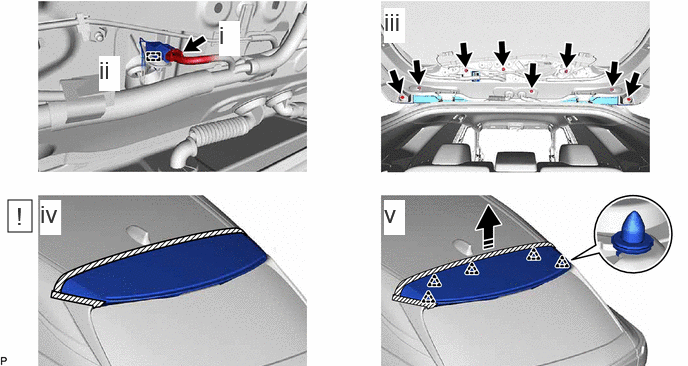

  3. REMOVE REAR SPOILER SUB-ASSEMBLY
    1. GTY1134774Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Disconnect the connector.
      2. Disengage the clamp.
      3. Remove the 6 nuts and 2 screws.
      4. Apply protective tape around the rear spoiler sub-assembly as shown in the illustration.
      5. Disengage the 5 clips and remove the rear spoiler sub-assembly as shown in the illustration.

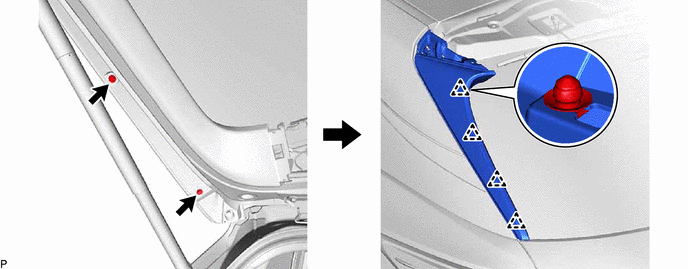

  4. REMOVE REAR SPOILER SIDE PROTECTOR SUB-ASSEMBLY LH
    1. GTY1137382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE REAR SPOILER SIDE PROTECTOR SUB-ASSEMBLY RH
    1. Use the same procedure as for the LH side.
