Caution / Notice / Hint

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during fuel filler opening lid sub-assembly removal/installation are shown below.

NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED

Replaced Part or Performed Procedure	Necessary Procedures	Effect/Inoperative Function When Necessary Procedures are not Performed	Link
Ultrasonic sensor*1	Ultrasonic sensor detection angle Ultrasonic sensor detection angle registration	Intuitive Parking Assist Sensor System Parking Support Brake System	Refer to CALIBRATION [10/2022 - ]
Ultrasonic sensor*1		Advanced Park	Refer to CALIBRATION [10/2022 - ]
Tires	for Gasoline Model AWD: ECU Data Initialization (When performing tire replacement after RoB code X2104 is output)	Dynamic Torque Control AWD System	Refer to CALIBRATION [10/2022 - ]
	Initialization23 Tire Position Identification23	Tire Pressure Warning System	Refer to Procedures Necessary When Replacing Parts (for Tire Pressure Warning System) table below
	Rear television camera assembly optical axis (Back camera position setting)	Parking Assist Monitor System	Refer to CALIBRATION [10/2022 - ]
	Parking assist ECU initialization	Panoramic View Monitor System	Refer to CALIBRATION [10/2022 - ]
	Parking assist ECU initialization	Advanced Park	Refer to CALIBRATION [10/2022 - ]
Rear seatback assembly LH1 Rear seatback assembly RH1	Initialize fold seat control ECU	Rear Power Seat Control System	Refer to INITIALIZATION [10/2022 - ]

*1: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.

*2: Also necessary after performing a tire rotation.

*3: It is not necessary to perform this procedure if the tire pressure warning valve and transmitters are installed to the same location.

NOTE:

After the ignition switch is turned off, the audio and visual system records various types of memory and settings. As a result, after turning the ignition switch off, make sure to wait at least 3 minutes before disconnecting the cable from the negative (-) auxiliary battery terminal.
When the cable is disconnected from the negative (-) auxiliary battery terminal and the security lock setting has been enabled, multi-display operations will be disabled upon next startup unless the password is entered. Be sure to check the security lock setting before disconnecting the cable from the negative (-) auxiliary battery terminal.
To prevent the key from being locked in the vehicle, make sure to enter e-latch inspection mode and enable the manual release handle before disconnecting the cable from the negative (-) auxiliary battery terminal.
Refer to INSPECTION MODE PROCEDURE [10/2022 - ]

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Stop and Start System	Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted.	Refer to PRECAUTION [10/2022 - ]
Front Camera System	except Gasoline Model: Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more. for Gasoline Model: Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	Refer to INITIALIZATION [10/2022 - ]
Adaptive High Beam System
LIGHTING SYSTEM (w/ Automatic Headlight Beam Level Control System)

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Power Back Door System	Reset back door close position	Refer to INITIALIZATION [10/2022 - ]
Air Conditioning System	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

COMPONENTS (REMOVAL)

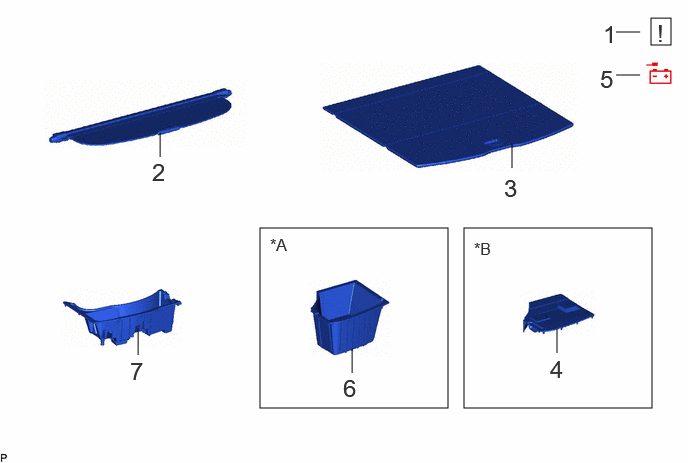

Fig 1: Fuel Lid Opener Unit Removal Components [10/2022 - 08/2023] (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
1	PRECAUTION	-	See step 1	-	-
2	TONNEAU COVER ASSEMBLY	64910J	-	-	-
3	DECK BOARD ASSEMBLY	58410B	-	-	-
4	BATTERY SERVICE COVER PLATE	58491E	-	-	-
5	DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL	-	-	-	-
6	REAR DECK FLOOR BOX	64993	-	-	-
7	REAR DECK FLOOR BOX LH	64993D	-	-	-

for Gasoline Model

except Gasoline Model

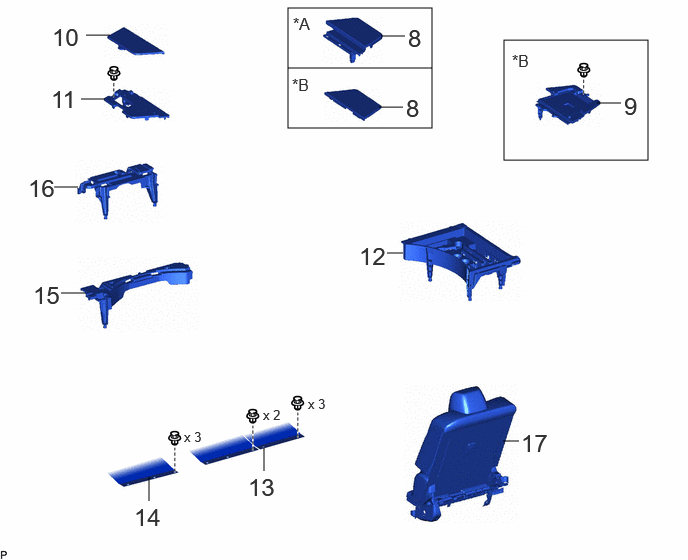

Fig 2: Fuel Lid Opener Unit Removal Components [10/2022 - 08/2023] (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
8	REAR FLOOR BOARD REAR RH	58417B	-	-	-
9	JUNCTION BLOCK SERVICE COVER	58461H	-	-	-
10	REAR FLOOR BOARD REAR LH	58418H	-	-	-
11	JUNCTION BLOCK SERVICE COVER LH	58461J	-	-	-
12	DECK FLOOR BOX RH	64995	-	-	-
13	SEPARATE REAR SEATBACK ASSEMBLY RH	-	-	-	-
14	SEPARATE REAR SEATBACK ASSEMBLY LH	-	-	-	-
15	DECK BOARD SET SUPPORT LH	58393F	-	-	-
16	DECK BOARD SET SUPPORT	58393E	-	-	-
17	REAR SEAT ASSEMBLY	-	-	-	-

for Gasoline Model

except Gasoline Model

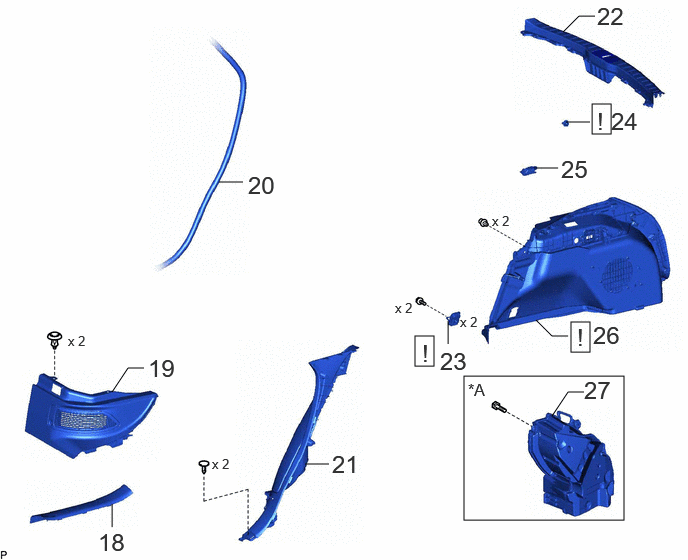

Fig 3: Fuel Lid Opener Unit Removal Components [10/2022 - 08/2023] (3 Of 5)

Procedure		Part Name Code
18	REAR DOOR SCUFF PLATE LH	67918A	-	-	-
19	NO. 3 BATTERY SERVICE COVER BOARD	58467J	-	-	-
20	DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP LH	62332C	-	-	-
21	REAR SEAT SIDE GARNISH LH	62552F	-	-	-
22	REAR FLOOR FINISH PLATE	58387B	-	-	-
23	ROPE HOOK ASSEMBLY	66310H	See step 23	-	-
24	NO. 1 LUGGAGE COMPARTMENT TRIM HOOK	64725F	See step 24	-	-
25	NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY	81330	-	-	-
26	DECK TRIM SIDE PANEL ASSEMBLY LH	64740C	See step 26	-	-
27	NO. 1 SPEAKER ASSEMBLY WITH BOX	86150	-	-	-

w/ Woofer

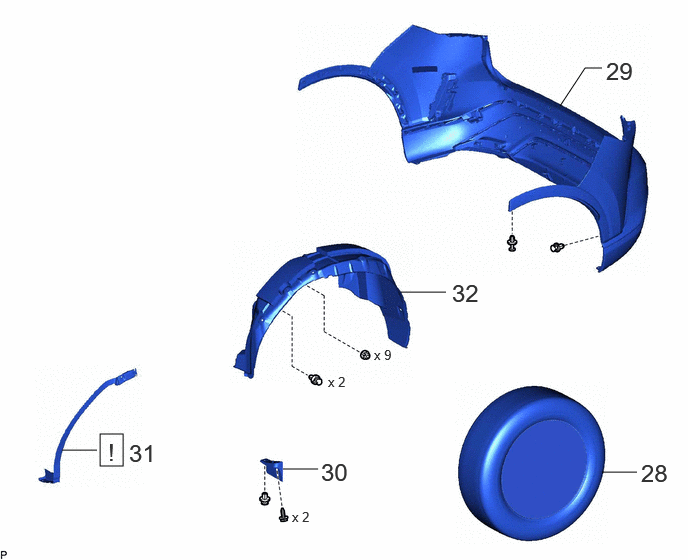

Fig 4: Fuel Lid Opener Unit Removal Components [10/2022 - 08/2023] (4 Of 5)

Procedure		Part Name Code
28	REAR WHEEL LH	-	-	-	-
29	REAR BUMPER ASSEMBLY	-	-	-	-
30	ROCKER PANEL MOULDING RETAINER LH	75866C	-	-	-
31	QUARTER WHEEL OPENING MOULDING LH	75874A	See step 31	-	-
32	REAR WHEEL HOUSE LINER LH	65638	-	-	-

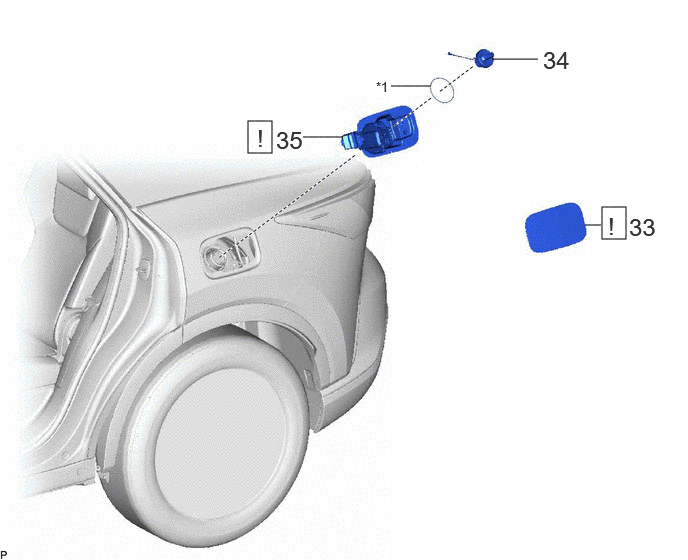

Fig 5: Fuel Lid Opener Unit Removal Components [10/2022 - 08/2023] (5 Of 5)

Procedure		Part Name Code
33	FUEL FILLER OUTER OPENING LID	77351A	See step 33	-	-
34	FUEL TANK CAP ASSEMBLY	77310A	-	-	-
35	FUEL FILLER OPENING LID SUB-ASSEMBLY	77305A	See step 35	-	-

FUEL INLET BOX RING
