Caution / Notice / Hint

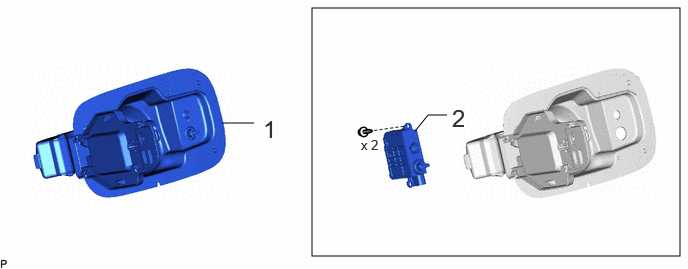

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during fuel filler opening lid lock sub-assembly removal/installation are shown below.
NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED
| Replaced Part or Performed Procedure | Necessary Procedures | Effect/Inoperative Function When Necessary Procedures are not Performed | Link |
|---|---|---|---|
| Ultrasonic sensor*1 |
|
|
Refer to CALIBRATION [10/2022 - ] |
| Advanced Park | Refer to CALIBRATION [10/2022 - ] | ||
| Tires | for Gasoline Model AWD:
|
Dynamic Torque Control AWD System | Refer to CALIBRATION [10/2022 - ] |
|
Tire Pressure Warning System | Refer to Procedures Necessary When Replacing Parts (for Tire Pressure Warning System) table below | |
| Rear television camera assembly optical axis (Back camera position setting) | Parking Assist Monitor System | Refer to CALIBRATION [10/2022 - ] | |
| Parking assist ECU initialization | Panoramic View Monitor System | Refer to CALIBRATION [10/2022 - ] | |
| Advanced Park | Refer to CALIBRATION [10/2022 - ] | ||
|
Initialize fold seat control ECU | Rear Power Seat Control System | Refer to INITIALIZATION [10/2022 - ] |
*1: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.
*2: Also necessary after performing a tire rotation.
*3: It is not necessary to perform this procedure if the tire pressure warning valve and transmitters are installed to the same location.
NOTE:
- After the ignition switch is turned off, the audio and visual system records various types of memory and settings. As a result, after turning the ignition switch off, make sure to wait at least 3 minutes before disconnecting the cable from the negative (-) auxiliary battery terminal.
- When the cable is disconnected from the negative (-) auxiliary battery terminal and the security lock setting has been enabled, multi-display operations will be disabled upon next startup unless the password is entered. Be sure to check the security lock setting before disconnecting the cable from the negative (-) auxiliary battery terminal.
- To prevent the key from being locked in the vehicle, make sure to enter e-latch inspection mode and enable the manual release handle before disconnecting the cable from the negative (-) auxiliary battery terminal.
HINT:
When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
- Learning completes when vehicle is driven
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Stop and Start System Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted. Refer to PRECAUTION [10/2022 - ] Front Camera System except Gasoline Model: - Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more.
for Gasoline Model:- Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.
Refer to INITIALIZATION [10/2022 - ] Adaptive High Beam System LIGHTING SYSTEM (w/ Automatic Headlight Beam Level Control System) - Learning completes when vehicle is operated normally
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Power Back Door System Reset back door close position Refer to INITIALIZATION [10/2022 - ] Air Conditioning System except PHEV Model: - After the ignition switch is turned to ON, the servo motor standard position is recognized.
for PHEV Model:- After the ignition switch is turned to ON, the servo motor and cooler expansion valve standard position is recognized.
-
