Inspection [08/2023 - ]: Procedure
- INSPECT CHARGE LID LOCK WITH MOTOR LOCK ASSEMBLY
- Check the operation of the charge lid lock with motor lock assembly.
- Measure the resistance according to the value(s) in the table below.
*a Component without harness connected

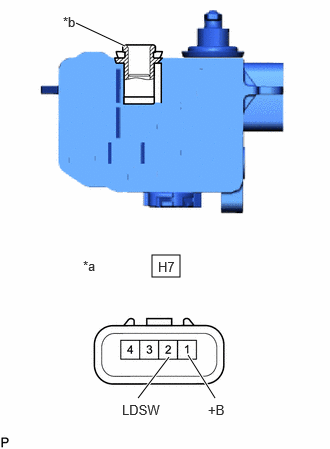

(Charge Lid Lock with Motor Lock Assembly)*b Push Lifter Standard Resistance
Tester Connection Condition Specified Condition Result H7-1 (+B) - H7-2 (LDSW) Not pushed (ON) 10 kΩ or higher kΩ H7-1 (+B) - H7-2 (LDSW) Pushed (OFF) Below 1 Ω Ω - If the result is not as specified, replace the charge lid lock with motor lock assembly.
- Measure the resistance according to the value(s) in the table below.
- Check the operation of the charge lid lock with motor lock assembly.
