Removal [10/2022 - ]: Procedure

  1. REMOVE BACK DOOR UPPER TRIM COVER

    Refer to PROCEDURE - Step 1

  2. REMOVE BACK DOOR SIDE GARNISH LH

    Refer to PROCEDURE - Step 2

  3. REMOVE BACK DOOR SIDE GARNISH RH
    1. Use the same procedure for the LH side.
  4. REMOVE BACK DOOR LOCK COVER

    Refer to PROCEDURE - Step 4

  5. REMOVE BACK DOOR INSIDE HANDLE
    Refer to PROCEDURE - Step 5
  6. REMOVE NO. 2 LUGGAGE COMPARTMENT LIGHT ASSEMBLY
    Refer to PROCEDURE - Step 1
  7. REMOVE BACK DOOR TRIM BOARD ASSEMBLY

    Refer to PROCEDURE - Step 8

  8. REMOVE MULTIPLEX NETWORK DOOR ECU

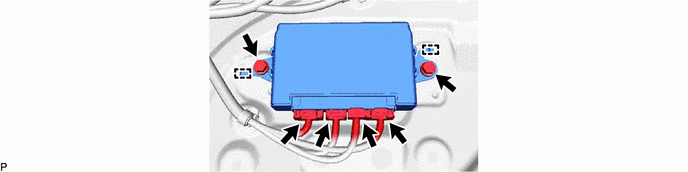

    1. GTY1136978Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
