Caution / Notice / Hint

COMPONENTS (REMOVAL)

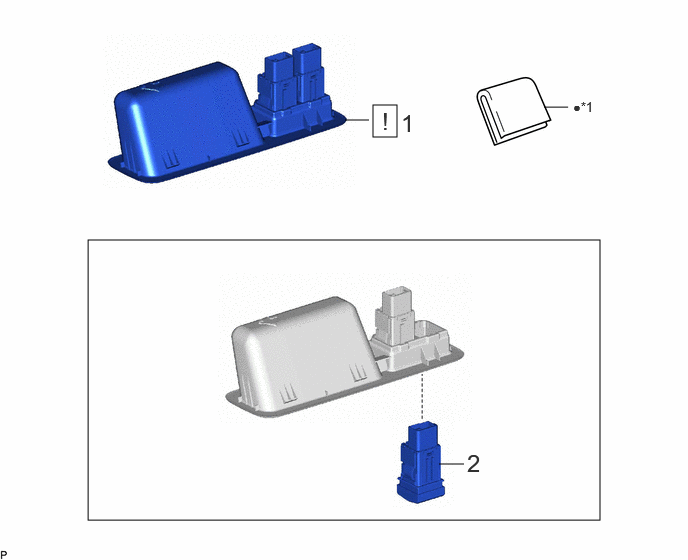

Fig 1: Reserve Lock Switch Removal Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
1	BACK DOOR INSIDE HANDLE	69212C	See step 1	-	-
2	BACK DOOR CONTROL SWITCH	84931C	-	-	-

*1	Switch Cover	-	-
•	Non-reusable part	-	-
