Reassembly [10/2022 - ]: Procedure

  1. INSTALL NO. 1 AMPLIFIER ANTENNA ASSEMBLY

    Refer to PROCEDURE - Step 1

  2. INSTALL NO. 5 ANTENNA CORD SUB-ASSEMBLY
    Refer to PROCEDURE - Step 1
  3. INSTALL ROOF HEADLINING ASSEMBLY

    Refer to INSTALLATION [10/2022 - 08/2023] , or refer to INSTALLATION [08/2023 - ]

  4. INSTALL BACK DOOR STAY STOPPER
  5. INSTALL BACK DOOR DAMPER STAY LOWER BRACKET LH
    Refer to PROCEDURE - Step 2
  6. INSTALL BACK DOOR DAMPER STAY LOWER BRACKET RH
    1. Use the same procedure as for the LH side.
  7. INSTALL BACK DOOR DAMPER STAY UPPER BRACKET LH
    Refer to PROCEDURE - Step 3
  8. INSTALL BACK DOOR DAMPER STAY UPPER BRACKET RH
    1. Use the same procedure as for the LH side.
  9. INSTALL POWER BACK DOOR UNIT ASSEMBLY LH
    Refer to PROCEDURE - Step 4
  10. INSTALL POWER BACK DOOR UNIT ASSEMBLY RH
    1. Use the same procedure as for the LH side.
  11. INSTALL BACK DOOR DUST PROOF SEAL
  12. INSTALL REAR TELEVISION CAMERA ASSEMBLY
  13. INSTALL BACK DOOR OPENER SWITCH ASSEMBLY
  14. INSTALL REAR LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  15. INSTALL REAR WIPER MOTOR GROMMET
    Refer to PROCEDURE - Step 1
  16. INSTALL REAR WIPER MOTOR ASSEMBLY

    Refer to PROCEDURE - Step 2

  17. INSTALL REAR WIPER ARM AND BLADE ASSEMBLY
    Refer to PROCEDURE - Step 3
  18. INSTALL REAR WASHER NOZZLE
  19. INSTALL REAR SPOILER SIDE PROTECTOR SUB-ASSEMBLY LH
  20. INSTALL REAR SPOILER SIDE PROTECTOR SUB-ASSEMBLY RH
  21. INSTALL REAR SPOILER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

  22. INSTALL HOLE PLUG
  23. INSTALL BACK DOOR LOCK ASSEMBLY WITH COURTESY LIGHT SWITCH
    Refer to PROCEDURE - Step 1
  24. INSTALL BACK DOOR WEIGHT

    Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

  25. INSTALL MULTIPLEX NETWORK DOOR ECU

    Refer to PROCEDURE - Step 1

  26. INSTALL INNER MIRROR CAMERA ASSEMBLY (w/ Digital Inner Mirror)
  27. CONNECT POWER BACK DOOR UNIT ASSEMBLY LH
  28. CONNECT POWER BACK DOOR UNIT ASSEMBLY RH
  29. INSTALL POWER BACK DOOR SENSOR ASSEMBLY LH
  30. INSTALL POWER BACK DOOR SENSOR ASSEMBLY RH
  31. INSTALL BACK DOOR TRIM BOARD ASSEMBLY
  32. INSTALL NO. 2 LUGGAGE COMPARTMENT LIGHT ASSEMBLY
  33. INSTALL BACK DOOR SERVICE HOLE COVER
  34. INSTALL BACK DOOR INSIDE HANDLE

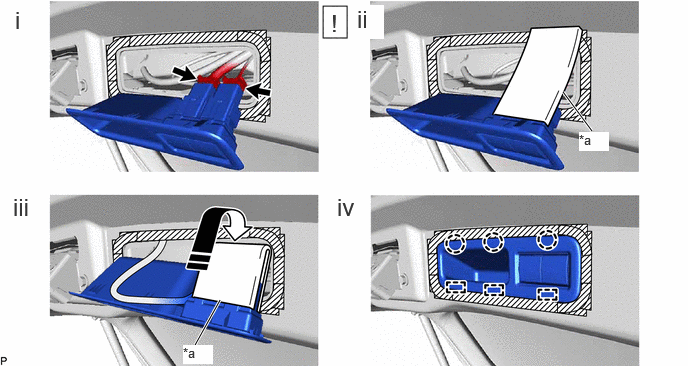

    1. GTY1126120Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Switch Cover - -
      Install in this Direction - -
      1. Connect the 2 connectors.
      2. Remove the release paper of the double-sided tape without touching the adhesive surface, and attach a new switch cover from the location shown in the illustration.
      3. Attach the switch cover in the direction shown in the illustration.
      4. Insert the 3 guides and engage the 3 claws to install the back door inside handle.
  35. INSTALL BACK DOOR LOCK COVER
  36. INSTALL BACK DOOR SIDE GARNISH LH
  37. INSTALL BACK DOOR SIDE GARNISH RH
  38. INSTALL BACK DOOR UPPER TRIM COVER
  39. ADJUST REAR WASHER NOZZLE

    Refer to PROCEDURE - Step 1

  40. INITIALIZE POWER BACK DOOR SYSTEM

    Refer to INITIALIZATION [10/2022 - ]

  41. INSPECT POWER BACK DOOR SYSTEM
    Refer to OPERATION CHECK [10/2022 - ]
  42. PERFORM CALIBRATION
    1. w/ Parking Assist Monitor System:

      Refer to CALIBRATION [10/2022 - ]

    2. w /Advanced Park:

      Refer to CALIBRATION [10/2022 - ]

  43. ADJUST BACK DOOR
    HINT:
    When the back door damper stay lower bracket is removed, it is necessary to perform back door position adjustment.
    Refer to ADJUSTMENT [10/2022 - ]
