Caution / Notice / Hint

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during back door disassembly/reassembly are shown below.

NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED

Replaced Part or Performed Procedure	Necessary Procedures	Effect/Inoperative Function When Necessary Procedures are not Performed	Link
Rear television camera assembly*1	Parking assist monitor system initialization Rear television camera assembly optical axis (Back camera position setting)	Parking Assist Monitor System	Refer to CALIBRATION [10/2022 - ]
	Rear television camera view adjustment	Advanced Park	Refer to CALIBRATION [10/2022 - ]
	Rear television camera view adjustment	Panoramic View Monitor System	Refer to CALIBRATION [10/2022 - ]
Multiplex network door ECU Power back door unit assembly set LH1 Power back door unit assembly set RH1	Reset back door close position	Power Back Door System	Refer to INITIALIZATION [10/2022 - ]
Replacement or removal and installation of 2 or more parts: Front television camera assembly, Radiator grille or Front bumper assembly Rear television camera assembly Side television camera assembly LH, Parking assist light LH or Outer rear view mirror assembly LH Side television camera assembly RH, Parking assist light RH or Outer rear view mirror assembly RH	Television camera view adjustment	Panoramic View Monitor System	Refer to CALIBRATION [10/2022 - ]

*1: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.

COMPONENTS (DISASSEMBLY)

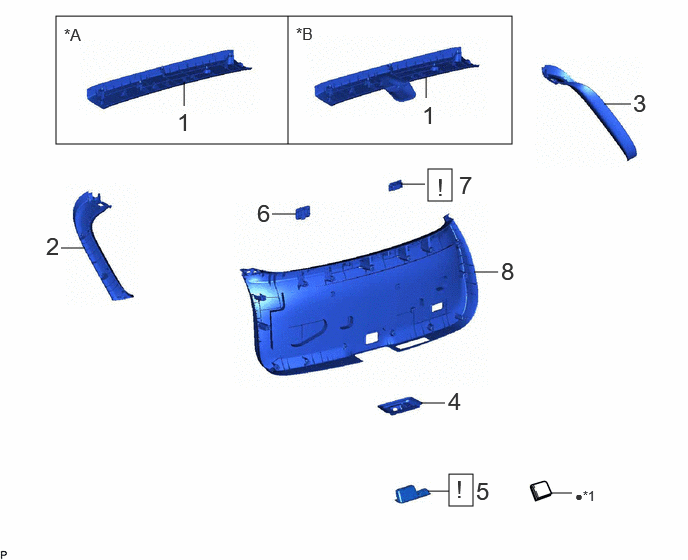

Fig 1: Back Door Disassembly Components (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
1	BACK DOOR UPPER TRIM COVER	67765B	-	-	-
2	BACK DOOR SIDE GARNISH LH	67938A	-	-	-
3	BACK DOOR SIDE GARNISH RH	67937B	-	-	-
4	BACK DOOR LOCK COVER	69321	-	-	-
5	BACK DOOR INSIDE HANDLE	69212C	See step 5	-	-
6	BACK DOOR SERVICE HOLE COVER	67847A	-	-	-
7	NO. 2 LUGGAGE COMPARTMENT LIGHT ASSEMBLY	81330A	See step 7	-	-
8	BACK DOOR TRIM BOARD ASSEMBLY	67750	-	-	-

*A	w/o Digital Inner Mirror	*B	w/ Digital Inner Mirror
*1	Switch Cover	-	-
•	Non-reusable part	-	-

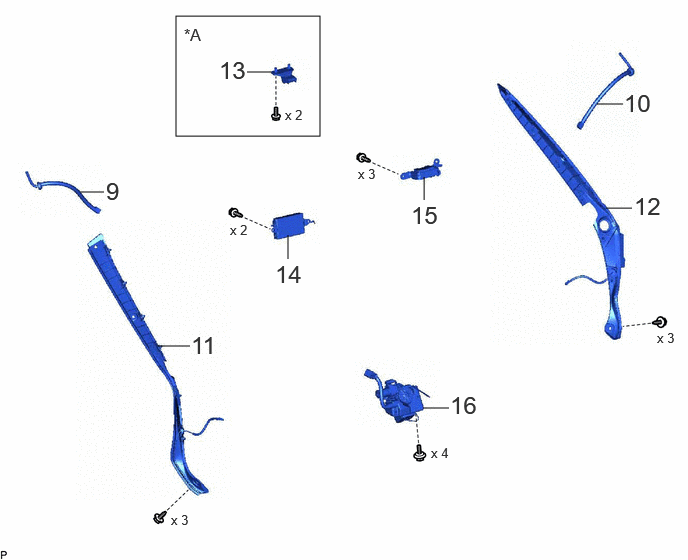

Fig 2: Back Door Disassembly Components (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
9	DISCONNECT POWER BACK DOOR UNIT ASSEMBLY LH	68920A	-	-	-
10	DISCONNECT POWER BACK DOOR UNIT ASSEMBLY RH	68910B	-	-	-
11	POWER BACK DOOR SENSOR ASSEMBLY LH	84280D	-	-	-
12	POWER BACK DOOR SENSOR ASSEMBLY RH	84270G	-	-	-
13	INNER MIRROR CAMERA ASSEMBLY	867C0B	-	-	-
14	MULTIPLEX NETWORK DOOR ECU	89222A	-	-	-
15	BACK DOOR WEIGHT	67372A	-	-	-
16	BACK DOOR LOCK ASSEMBLY WITH COURTESY LIGHT SWITCH	69350P	-	-	-

w/ Digital Inner Mirror

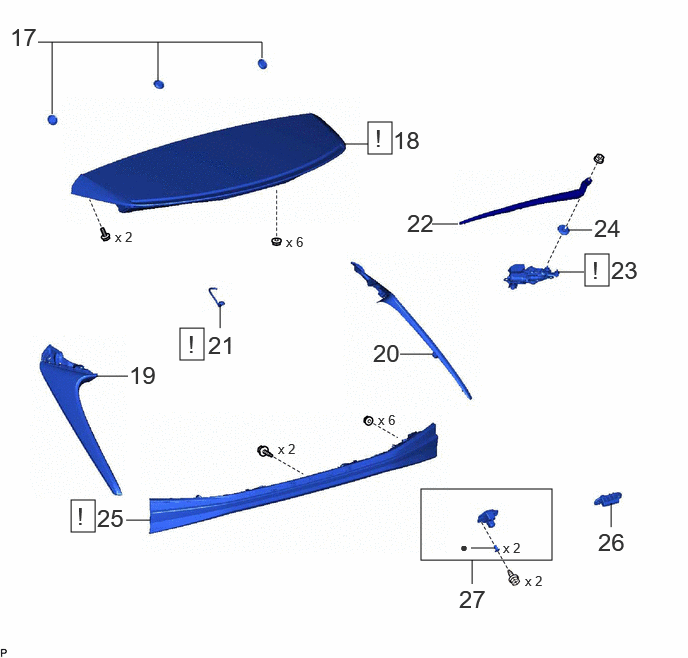

Fig 3: Back Door Disassembly Components (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
17	HOLE PLUG	-	-	-	-
18	REAR SPOILER SUB-ASSEMBLY	76085	See step 18	-	-
19	REAR SPOILER SIDE PROTECTOR SUB-ASSEMBLY LH	76808	-	-	-
20	REAR SPOILER SIDE PROTECTOR SUB-ASSEMBLY RH	76807	-	-	-
21	REAR WASHER NOZZLE	85345R	See step 21	-	-
22	REAR WIPER ARM AND BLADE ASSEMBLY	-	-	-	-
23	REAR WIPER MOTOR ASSEMBLY	85110R	See step 23	-	-
24	REAR WIPER MOTOR GROMMET	85143R	-	-	-
25	REAR LIGHT ASSEMBLY	-	See step 25	-	-
26	BACK DOOR OPENER SWITCH ASSEMBLY	84840G	-	-	-
27	REAR TELEVISION CAMERA ASSEMBLY	86790D	-	-	-

•

Non-reusable part

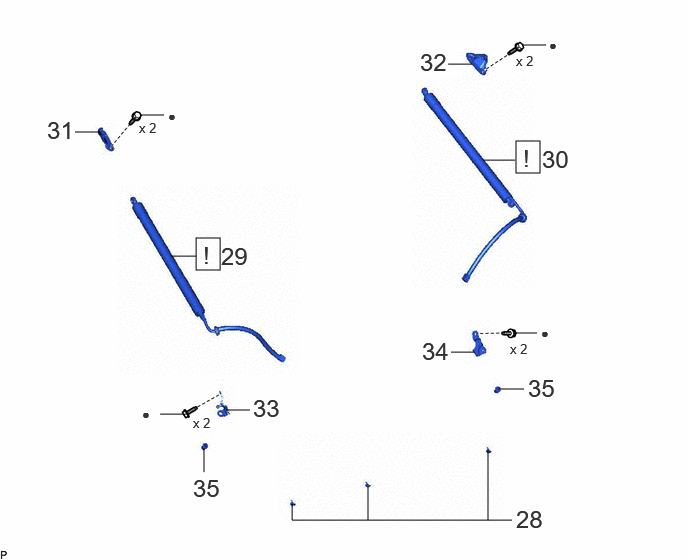

Fig 4: Back Door Disassembly Components (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
28	BACK DOOR DUST PROOF SEAL	67837N	-	-	-
29	POWER BACK DOOR UNIT ASSEMBLY LH	68920A	See step 29	-	-
30	POWER BACK DOOR UNIT ASSEMBLY RH	68910B	See step 30	-	-
31	BACK DOOR DAMPER STAY UPPER BRACKET LH	68946	-	-	-
32	BACK DOOR DAMPER STAY UPPER BRACKET RH	68945	-	-	-
33	BACK DOOR DAMPER STAY LOWER BRACKET LH	68948	-	-	-
34	BACK DOOR DAMPER STAY LOWER BRACKET RH	68947	-	-	-
35	BACK DOOR STAY STOPPER	68984	-	-	-

•

Non-reusable part

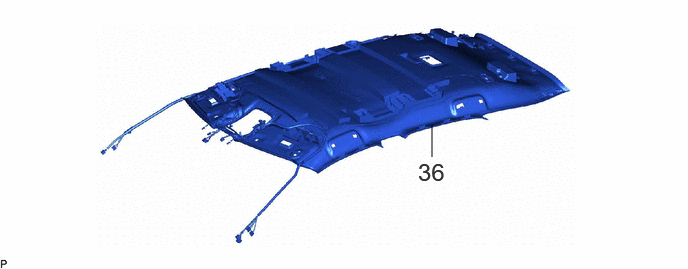

Fig 5: Back Door Disassembly Components (5 Of 6)

Procedure		Part Name Code
36	ROOF HEADLINING ASSEMBLY	-	-	-	-

Fig 6: Back Door Disassembly Components (6 Of 6)

Procedure		Part Name Code
37	NO. 5 ANTENNA CORD SUB-ASSEMBLY	86101R	-	-	-
38	NO. 1 AMPLIFIER ANTENNA ASSEMBLY	86300B	-	-	-
