Caution / Notice / Hint
COMPONENTS (REASSEMBLY)
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|

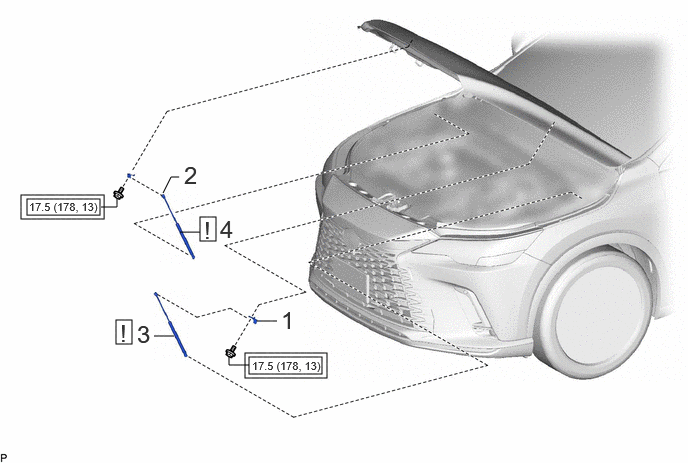

| 1 | HOOD STAY BRACKET LH | 53337C | - | - | - |
| 2 | HOOD STAY BRACKET RH | 53336 | - | - | - |
| 3 | HOOD SUPPORT ASSEMBLY LH | 53450A | See step 3 | - | - |
| 4 | HOOD SUPPORT ASSEMBLY RH | 53440A | See step 4 | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|

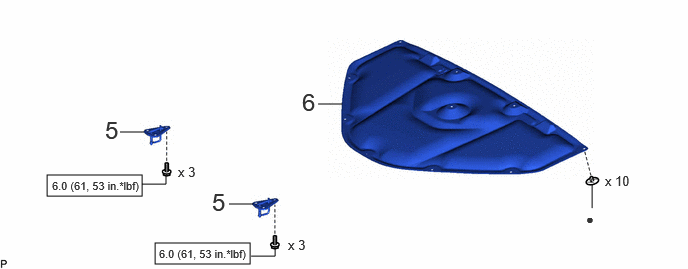

| 5 | HOOD LOCK STRIKER ASSEMBLY | 53580 | - | - | - |
| 6 | HOOD INSULATOR | 53341B | - | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
