Adjustment [10/2022 - ]: Procedure

INSPECT FRONT DOOR

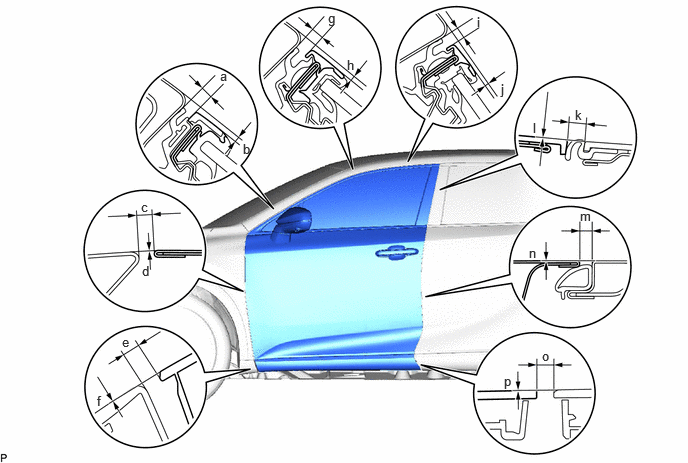

Check that the clearance measurements of areas a through p are within each standard range.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

STANDARD CLEARANCE

Area	Measurement	Area	Measurement
a	3.0 to 7.0 mm (0.118 to 0.276 in.)	b	0.5 to 4.5 mm (0.020 to 0.177 in.)
c	2.4 to 5.4 mm (0.094 to 0.213 in.)	d	-1.5 to 1.5 mm (-0.059 to 0.059 in.)
e	3.5 to 7.5 mm (0.138 to 0.295 in.)	f	-2.0 to 2.0 mm (-0.0787 to 0.0787 in.)
g	3.0 to 7.0 mm (0.118 to 0.276 in.)	h	0.5 to 4.5 mm (0.020 to 0.177 in.)
i	3.2 to 7.2 mm (0.126 to 0.283 in.)	j	-0.1 to 3.9 mm (-0.004 to 0.154 in.)
k	3.2 to 7.2 mm (0.126 to 0.283 in.)	l	-2.0 to 2.0 mm (-0.0787 to 0.0787 in.)
m	2.5 to 4.9 mm (0.098 to 0.193 in.)	n	-1.2 to 1.2 mm (-0.047 to 0.047 in.)
o	3.6 to 5.6 mm (0.142 to 0.220 in.)	p	-2.0 to 2.0 mm (-0.0787 to 0.0787 in.)

ADJUST FRONT DOOR

NOTE:

Make sure to turn the ignition switch off before adjusting the door lock strikers.

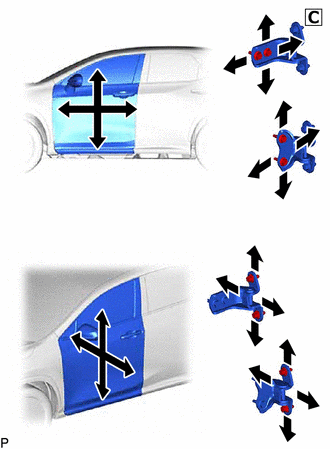

Using SST, loosen the 4 hinge bolts on the vehicle body and adjust the door position.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Tighten the 4 hinge bolts on the vehicle body after adjustment.
Torque: 26 N.m (265 kgf/cm, 19 ft.lbf)
Loosen the 4 hinge bolts on the door and adjust the door position.
Tighten the 4 hinge bolts on the door after adjustment.
Torque: 26 N.m (265 kgf/cm, 19 ft.lbf)

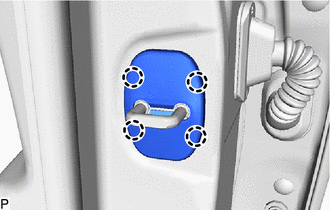

Disengage the 4 claws to remove the front door lock striker cover.

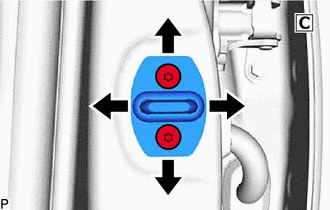

Using a T40 "TORX" socket wrench, slightly loosen the 2 striker mounting screws.

Using a brass bar and a hammer, hit the striker to adjust its position.
Using a T40 "TORX" socket wrench, tighten the 2 striker mounting screws after adjustment.
Torque: 23 N.m (235 kgf/cm, 17 ft.lbf)

Engage the 4 claws to install the front door lock striker cover.
