Removal [10/2022 - ]: Procedure

  1. REMOVE REAR SPOILER SUB-ASSEMBLY

    Refer to REMOVAL [10/2022 - ]

  2. REMOVE REAR WASHER NOZZLE

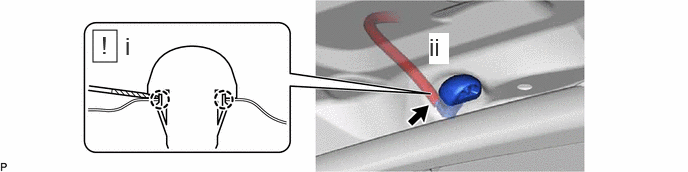

    1. GTY1135052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a screwdriver with its tip wrapped in protective tape, disengage the 2 claws.
      2. Disconnect the rear washer hose and remove the rear washer nozzle.
