Removal [10/2022 - ]: Procedure

  1. REMOVE REAR SPOILER SUB-ASSEMBLY

    Refer to REMOVAL [10/2022 - ]

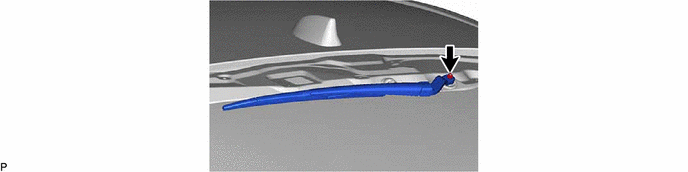

  2. REMOVE REAR WIPER ARM AND BLADE ASSEMBLY
    1. GTY1137312Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

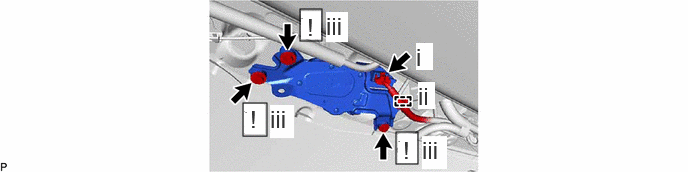

  3. REMOVE REAR WIPER MOTOR ASSEMBLY
    1. GTY1134767Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the connector.
      2. Disengage the clamp.
      3. Remove the 3 bolts and rear wiper motor assembly.
        NOTE:

        Be careful not to scratch the back door glass.

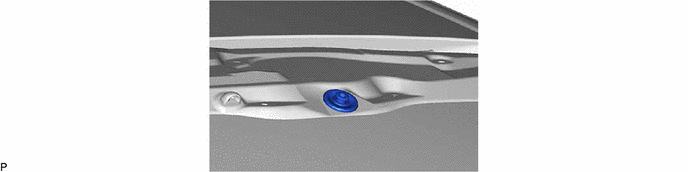

  4. REMOVE REAR WIPER MOTOR GROMMET
    1. GTY1137314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
