Removal [10/2024 - ]: Procedure

PRECAUTION

w/ Parking Assist Monitor System:
Refer to PRECAUTION [10/2022 - ]
w/ Panoramic View Monitor System:
Refer to PRECAUTION [10/2022 - ]

REMOVE REAR LIGHT ASSEMBLY
Refer to REMOVAL [10/2022 - ]

REMOVE REAR TELEVISION CAMERA ASSEMBLY

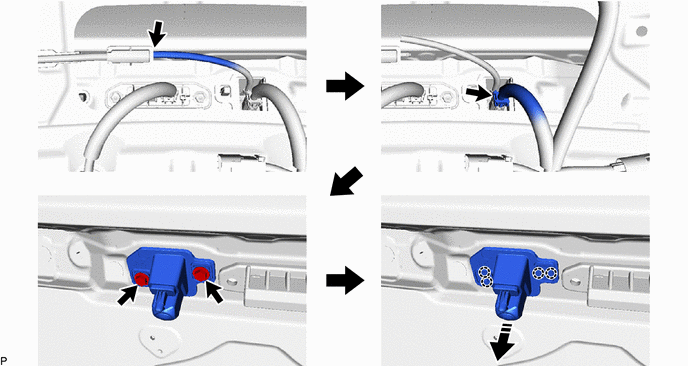

GTY1253977

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

-

-

When reusing the rear television camera assembly:

GTY1136379

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

-

-

REMOVE NO. 1 CAMERA CLEANER NOZZLE ASSEMBLY
Refer to PROCEDURE - Step 2
