Removal [10/2022 - 10/2024]: Procedure

  1. PRECAUTION
  2. REMOVE REAR LIGHT ASSEMBLY

    Refer to REMOVAL [10/2022 - ]

  3. REMOVE REAR TELEVISION CAMERA ASSEMBLY

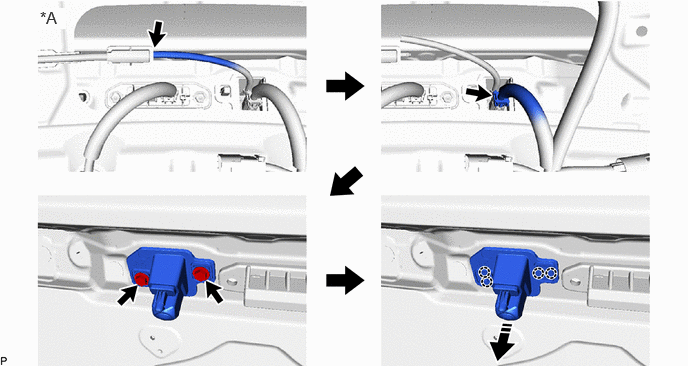

    1. GTY1137607Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Rear Camera Washer - -
      Remove in this Direction - -
    2. When reusing the rear television camera assembly:
      GTY1136379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  4. REMOVE NO. 1 CAMERA CLEANER NOZZLE ASSEMBLY (w/ Rear Camera Washer)

    Refer to PROCEDURE - Step 2
