Microphone Circuit [10/2022 - ]: Wiring Diagram

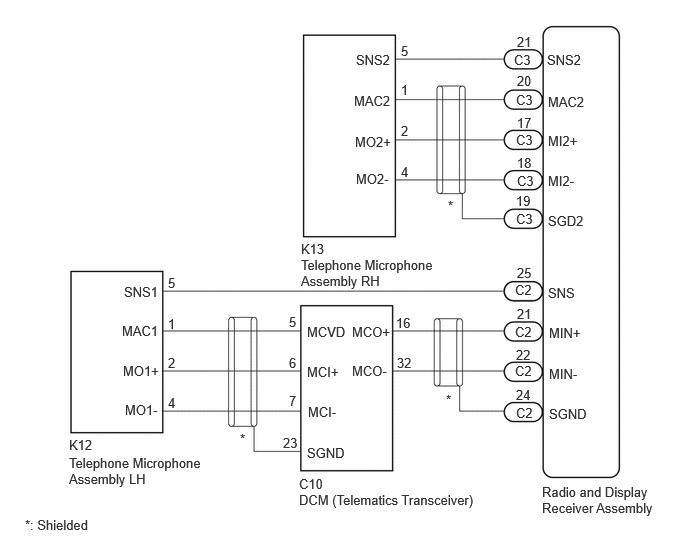

w/ DCM (Telematics Transceiver)

GTY1125661Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

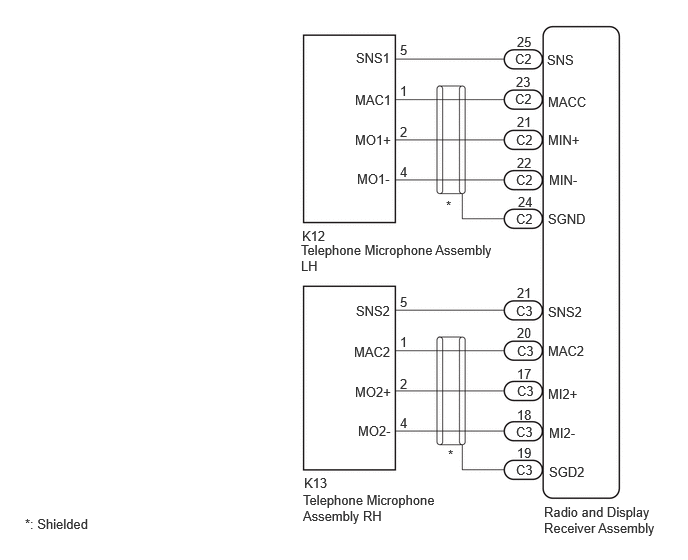

w/o DCM (Telematics Transceiver)

GTY1127058Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
