DTC B1AD0-71: Center Speaker Cable Actuator Stuck [10/2022 - ]: Wiring Diagram

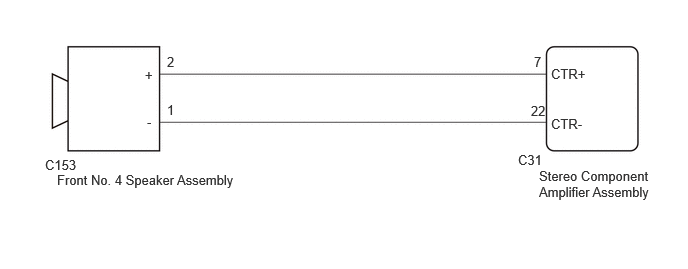

w/o "Mark Levinson" sound system

GTY1135743Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

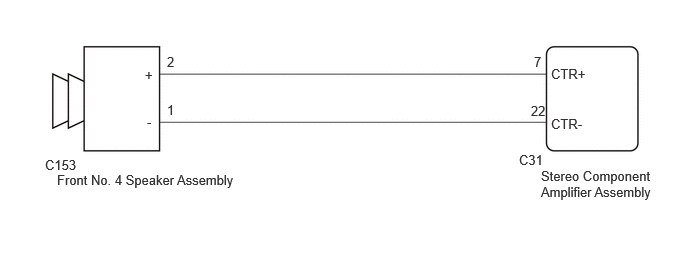

w/ "Mark Levinson" sound system

GTY1134109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
